BOA24010NF

$67.13

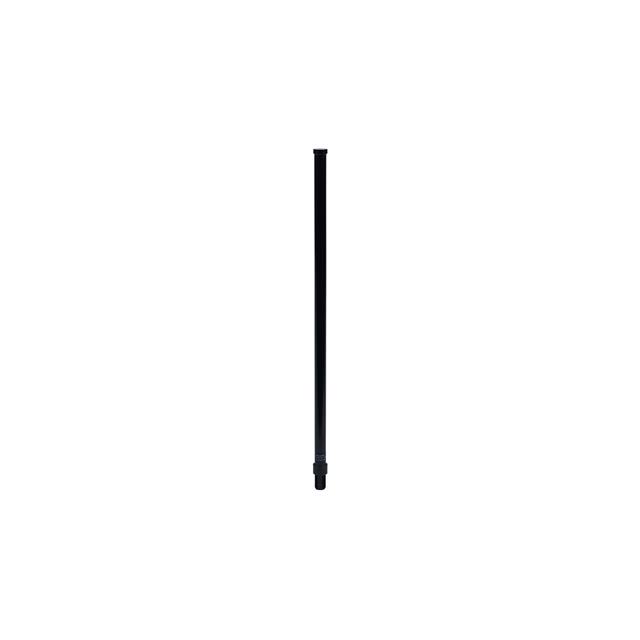

Description：RF ANT 2.45GHZ WHIP STR N TYPE
Series：BOA
Mfr：Amphenol PCTEL
Package：Bag

SKU:b1bea689eeae Category: RF Antennas Brand: Amphenol PCTEL

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BOA24010NF is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is RF ANT 2.45GHZ WHIP STR N TYPE. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for BOA24010NF

Description：RF ANT 2.45GHZ WHIP STR N TYPE
Series：BOA
Mfr：Amphenol PCTEL
Package：Bag
RF Family/Standard：WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：10dBi
Features：-
Termination：N Type Female
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Connector Mount, Pole Mount
Height (Max)：25.300" (642.62mm)
Applications：Bluetooth, Wi-Fi
Power - Max：40 W
