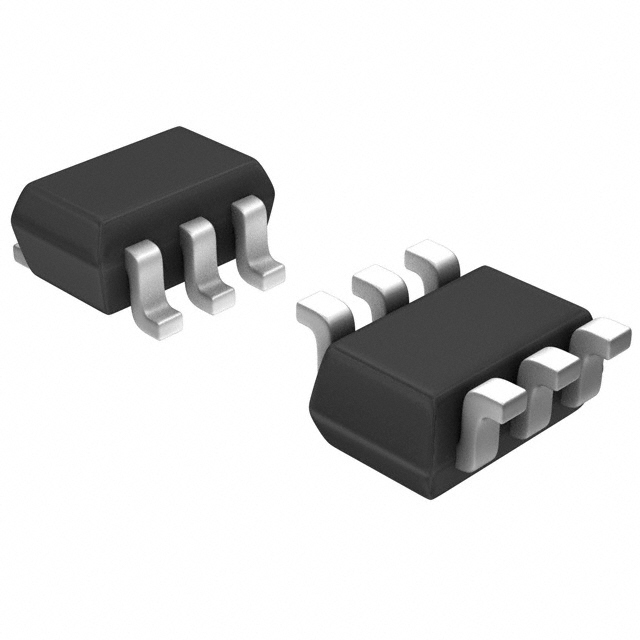

BSD340NH6327XTSA1

Description：MOSFET P-CH SOT363-6
Series：OptiMOS™

SKU:43bc591b5b21 Category: FET, MOSFET Arrays Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET P-CH SOT363-6
Series：OptiMOS™
Mfr：Infineon Technologies
Package：Tape & Reel (TR)
Technology：-
Configuration：-
FET Feature：-
Drain to Source Voltage (Vdss)：-
Current - Continuous Drain (Id) @ 25°C：-
Rds On (Max) @ Id, Vgs：-
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：-
Input Capacitance (Ciss) (Max) @ Vds：-
Power - Max：-
Operating Temperature：-
Mounting Type：Surface Mount
Package / Case：6-VSSOP, SC-88, SOT-363
Supplier Device Package：PG-SOT363-6
Grade：Automotive
Qualification：AEC-Q101

Download product information

BSD340NH6327XTSA1

Overview

The BSD340NH6327XTSA1 is a dual N-channel OptiMOS2 small-signal transistor in a SOT-363-6 package. It features a drain-source voltage of 30 V, continuous drain current of 0.88 A at 25°C, and maximum on-resistance of 600 mΩ at VGS=4.5V. The device supports pulsed currents up to 3.5 A, operates between -55°C and 150°C, and has a power dissipation of 0.5 W.

Feature Summary

Dual N-channel enhancement mode configuration
Logic level rated for 4.5V gate drive
Avalanche energy rated capability
Qualified according to AEC-Q101 standards

Applications

Automotive electronic systems
Low-side switching applications
General purpose signal processing circuits

Procurement Notes

Verify the component against the official Infineon datasheet revision 2.0 dated June 23, 2016. Confirm that the ordering code matches BSD340N and the marking corresponds to XGs. Ensure compliance with RoHS and halogen-free requirements as specified in the documentation.

Selection Notes

Select this component for designs requiring dual N-channel switching within a compact SOT-363-6 footprint. It is suitable for automotive environments due to its AEC-Q101 qualification. Consider the 600 mΩ on-resistance at 4.5V logic levels when evaluating efficiency requirements.

Part Context

This part belongs to the OptiMOS2 family of small-signal transistors designed by Infineon Technologies. It utilizes silicon technology and is housed in the PG-SOT363 package. The series is engineered for high reliability and low power consumption in modern electronic applications.

Replacement Considerations

Consult official Infineon documentation for verified substitute part numbers. Do not assume cross-compatibility with other MOSFET families without explicit manufacturer confirmation.
