Product Detailed Parameters
- Description：PFET, 35A I(D), 55V, 0.035OHM, 1
- Series：TrenchMOS™
- Mfr：Nexperia USA Inc.
- Package：Tube
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：55 V
- Current - Continuous Drain (Id) @ 25°C：35A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：10V
- Rds On (Max) @ Id, Vgs：35mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id：4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs：-
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：872 pF @ 25 V
- FET Feature：-
- Power Dissipation (Max)：85W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：Automotive
- Qualification：AEC-Q101
- Mounting Type：Through Hole

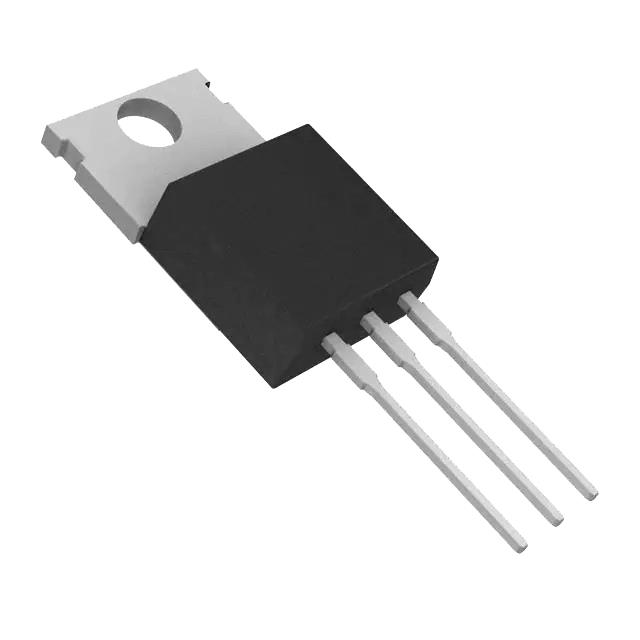

- Supplier Device Package：TO-220AB
- Package / Case：TO-220-3
Download product information
Overview
The BUK7535-55A,127 is an N-channel enhancement mode Field-Effect Transistor (FET) manufactured by Nexperia. It utilizes High-Performance Automotive (HPA) TrenchMOS technology and is designed for standard level gate drive sources. The device is qualified to AEC-Q101 standards for automotive critical applications and supports operation in thermally demanding environments with a maximum junction temperature rating of 175 °C.
Feature Summary
- AEC-Q101 compliant for automotive reliability
- Suitable for standard level gate drive sources
- Rated for 175 °C junction temperature
Applications
- Automotive systems
- General purpose power switching
- Motor control
- Solenoid drivers
Procurement Notes
Verify the specific suffix '127' against official Nexperia documentation to confirm the exact tape and reel packaging configuration. Confirm current production status via the manufacturer's longevity program, as automotive MOSFETs may undergo lifecycle transitions. Ensure the component meets all required AEC-Q101 qualification standards for the target application environment.
Selection Notes
Select this component when a robust N-channel MOSFET is required for automotive-grade circuits operating at standard logic levels. The 175 °C thermal rating makes it suitable for high-temperature environments where standard commercial devices would fail. Verify that the package type and pinout match the PCB footprint requirements.
Part Context
This part belongs to the BUK75xx series of HPA TrenchMOS FETs from Nexperia. These components are engineered specifically for the automotive sector, offering enhanced ruggedness and thermal performance compared to general-purpose industrial transistors. The series is characterized by low on-resistance and high avalanche capability.
Replacement Considerations
Consult official Nexperia substitution guides for verified equivalents. Generic replacements must match the voltage rating, current capacity, and AEC-Q101 qualification status.
