Product Detailed Parameters
- Description：TRANSISTOR >30MHZ
- Series：*
- Mfr：Nexperia USA Inc.
- Package：Bulk
- FET Type：-
- Technology：-
- Drain to Source Voltage (Vdss)：-
- Current - Continuous Drain (Id) @ 25°C：-
- Drive Voltage (Max Rds On, Min Rds On)：-
- Rds On (Max) @ Id, Vgs：-
- Vgs(th) (Max) @ Id：-
- Gate Charge (Qg) (Max) @ Vgs：-
- Vgs (Max)：-
- Input Capacitance (Ciss) (Max) @ Vds：-
- FET Feature：-
- Power Dissipation (Max)：-
- Operating Temperature：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Supplier Device Package：-
- Package / Case：-
Download product information
Overview

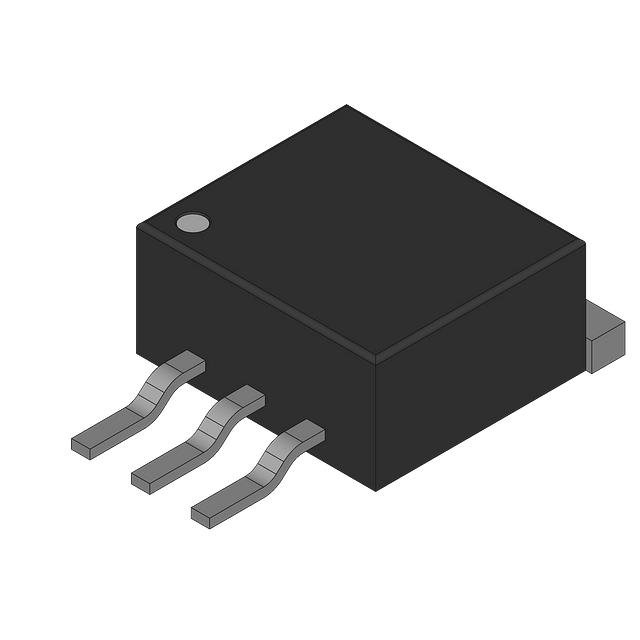

The BUK7620-100A,118 is an N-channel TrenchMOS standard level field-effect transistor manufactured by Nexperia USA Inc. It is designed for high-performance automotive applications and complies with the AEC-Q101 qualification standard. The device utilizes TrenchMOS technology to achieve low on-resistance and efficient switching capabilities. It features a true standard level gate with a threshold voltage greater than 1 V at 175 °C, ensuring reliable operation in thermally demanding environments. The component is housed in a SOT404 package, suitable for surface-mount assembly.
Feature Summary
- Compliant with AEC-Q101 standards for automotive critical applications
- Capable of repetitive avalanche rated operations
- Suitable for thermally demanding environments due to 175 °C rating
- True standard level gate with V GS(th) rating of greater than 1 V at 175 °C
Applications
- 12 V Automotive systems
- Electric and electro-hydraulic power steering
- Motors, lamps and solenoid control
- Start-Stop micro-hybrid applications
- Transmission control
Procurement Notes
Verify the specific ordering code suffix against official Nexperia documentation to ensure correct package and tape-and-reel configuration. Confirm that the AEC-Q101 qualification status matches the design requirements for automotive safety-critical circuits. Check for any recent Product Change Notifications (PCN) regarding packaging or material composition updates before finalizing procurement plans.
Selection Notes
Select this component when designing circuits requiring robust N-channel MOSFET performance under automotive conditions. The true standard level gate simplifies drive circuitry by allowing direct interfacing with standard logic levels even at elevated temperatures. Ensure the thermal management solution supports the 175 °C junction temperature rating for long-term reliability in high-power switching applications.
Part Context
This part belongs to Nexperia's BUK76 series of N-channel TrenchMOS standard level FETs. The series is engineered using High-Performance Automotive (HPA) technology to meet stringent automotive reliability standards. These transistors are optimized for power switching applications where low on-resistance and high thermal stability are critical for system efficiency and durability.
Replacement Considerations
Consult official Nexperia substitution guides for verified alternatives. Cross-reference pinouts and electrical characteristics carefully when considering generic equivalents to ensure compatibility with existing automotive system designs.
