Product Detailed Parameters

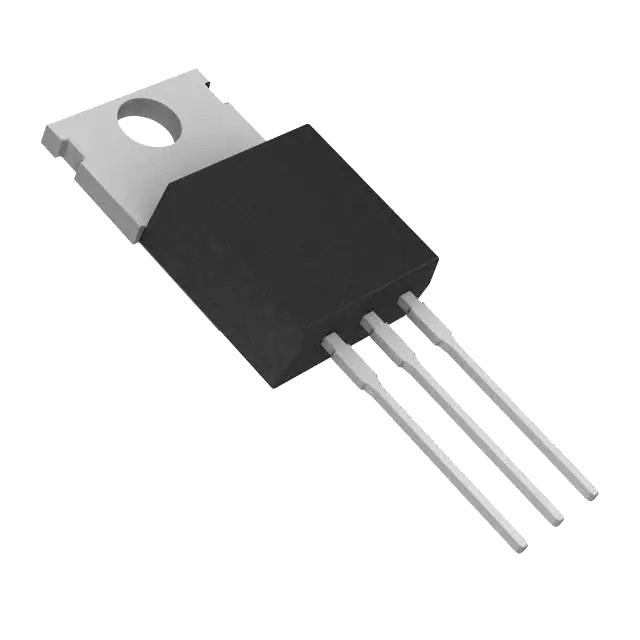

- Description：MOSFET N-CH 40V 75A TO220AB
- Series：*
- Mfr：Nexperia USA Inc.
- Package：Tube
- FET Type：-
- Technology：-
- Drain to Source Voltage (Vdss)：-
- Current - Continuous Drain (Id) @ 25°C：-
- Drive Voltage (Max Rds On, Min Rds On)：-
- Rds On (Max) @ Id, Vgs：-
- Vgs(th) (Max) @ Id：-
- Gate Charge (Qg) (Max) @ Vgs：-
- Vgs (Max)：-
- Input Capacitance (Ciss) (Max) @ Vds：-
- FET Feature：-
- Power Dissipation (Max)：-
- Operating Temperature：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Supplier Device Package：-
- Package / Case：-
Download product information
Overview
The BUK9504-40A,127 is an N-channel enhancement mode power transistor utilizing TrenchMOS technology. It features a drain-source voltage (VDS) of 40 V and a continuous drain current (ID) of 198 A at 25 °C mounting base temperature. The device offers a maximum on-state resistance (RDSon) of 4.4 mΩ at VGS = 5 V and ID = 25 A. Total power dissipation reaches 300 W under specified conditions. The component supports a junction temperature up to 175 °C and includes a source-drain diode with a reverse recovery time of 260 ns.
Feature Summary
- TrenchMOS logic level technology for low conduction losses
- Automotive qualified to AEC-Q101 standard
- Logic level compatible gate drive
- Rated for 175 °C junction temperature
Applications
- 12 V automotive loads
- General purpose power switching
- Motor control applications
- Lamp and solenoid driving
Procurement Notes
Verify the specific package variant, as the BUK95 series encompasses multiple form factors including SOT78 (TO-220AB), SOT404 (D2-PAK), and SOT226 (I2-PAK). Confirm that the ordering suffix matches the required physical footprint. Check current product status, as availability may vary by region or distributor channel. Ensure compliance with RoHS directives if applicable to the target market.
Selection Notes
Select this component for high-current switching applications requiring low on-state resistance. The logic level gate compatibility simplifies driver circuit design. Consider thermal management requirements due to high power dissipation capabilities. Verify that the 40 V rating provides sufficient margin for the specific system voltage. Evaluate the package type based on available board space and heatsinking constraints.
Part Context
This part belongs to the BUK95/96/9E04-40A family of TrenchMOS logic level FETs manufactured by Nexperia USA Inc. The family shares similar electrical characteristics but differs in packaging options to suit various mounting needs. The BUK9504-40A specifically denotes the TO-220AB package variant within this lineup.
