BYM357X,127

$0.65

Description：DIODE ARR GP 1500V 15.7A TO-220F
Series：-

SKU:1aec50c5dbe9 Category: Diode Arrays Brand: NXP USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BYM357X,127 is listed in the Diode Arrays range at ChipApex. The manufacturer field lists NXP USA Inc.. Its product description is DIODE ARR GP 1500V 15.7A TO-220F. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for BYM357X,127

Description：DIODE ARR GP 1500V 15.7A TO-220F
Series：-
Mfr：NXP USA Inc.
Package：Tube
Diode Configuration：1 Pair Series Connection
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：1500 V
Current - Average Rectified (Io) (per Diode)：15.7A
Voltage - Forward (Vf) (Max) @ If：1.45 V @ 6.5 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：300 ns
Current - Reverse Leakage @ Vr：250 µA @ 1500 V
Operating Temperature - Junction：150°C (Max)
Mounting Type：Through Hole

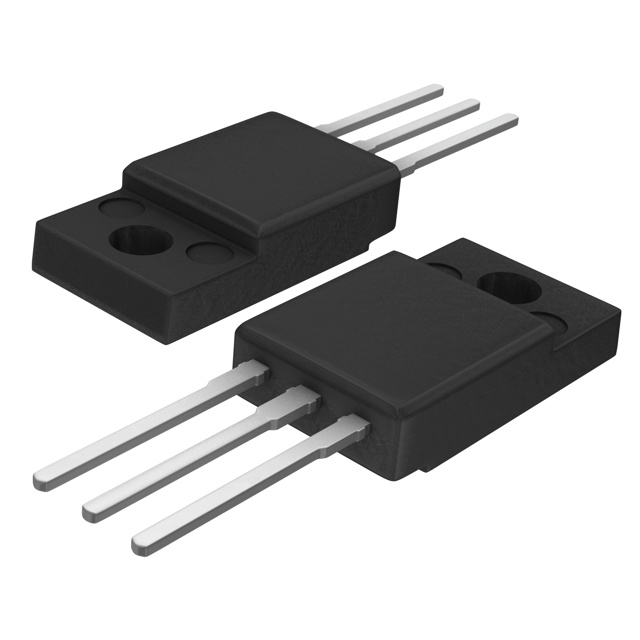

Package / Case：TO-220-3 Full Pack, Isolated Tab
Supplier Device Package：TO-220F
Grade：-
Qualification：-

Diode Arrays datasheet and documents for BYM357X,127

BYM357X,127

Diode Arrays Overview

The BYM357X,127 is a combined damper and modulator diode in an isolated plastic envelope designed for horizontal deflection circuits. It features a peak repetitive reverse voltage of 1500 V for the damper and 600 V for the modulator. The device supports peak forward currents of 7 A with non-repetitive surge ratings up to 66 A for the damper and 77 A for the modulator. Operating junction temperatures range from -40 °C to 150 °C. The component utilizes an SOT186A package with an electrically isolated mounting tab.

Diode Arrays Feature Summary

Combined damper and modulator diodes integrated within a single isolated plastic envelope
High thermal cycling performance capability for robust operation
Soft recovery characteristic to minimize electromagnetic interference
Isolated mounting tab providing electrical separation from external heatsinks

Diode Arrays Applications

Horizontal deflection circuits in colour television sets
Horizontal deflection circuits in PC monitors

Diode Arrays Procurement Notes

Verify the specific ordering suffix against current manufacturer documentation to confirm availability status. Confirm that the SOT186A package dimensions align with your printed circuit board layout requirements. Ensure that the isolation voltage rating meets the safety standards required by your target application environment.

Diode Arrays Selection Notes

Select this component when high-voltage handling and fast switching are required in a compact form factor. The dual-diode configuration simplifies circuit design by reducing component count. Verify that the thermal resistance characteristics support the heat dissipation needs of your specific power supply topology.

Diode Arrays Part Context

This part belongs to the BYM series of combined damper-modulator diodes manufactured by NXP Semiconductors (formerly Philips). These components are engineered specifically for high-frequency switching applications found in display technology. The series provides a reliable solution for managing high voltages and currents in deflection yoke circuits.
