BYR29-600,127

$0.39

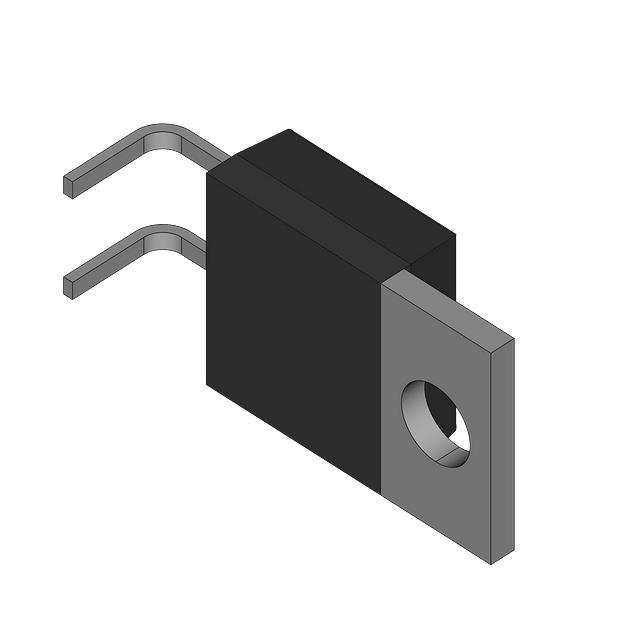

Description：DIODE STANDARD 600V 8A TO220AC
Series：-
Mfr：NXP USA Inc.
Package：Bulk

SKU:b26673030fa9 Category: Single Diodes Brand: NXP USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE STANDARD 600V 8A TO220AC
Series：-
Mfr：NXP USA Inc.
Package：Bulk
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：600 V
Current - Average Rectified (Io)：8A
Voltage - Forward (Vf) (Max) @ If：1.5 V @ 8 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：75 ns
Current - Reverse Leakage @ Vr：10 µA @ 600 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：TO-220-2
Supplier Device Package：TO-220AC
Operating Temperature - Junction：150°C (Max)
Grade：-
Qualification：-

Download product information

BYR29-600,127

Overview

The BYR29-600,127 is an ultra-fast epitaxial rectifier diode manufactured by NXP USA Inc. It features a single-phase configuration with one element and is constructed from silicon. The device supports an average rectified current of 8A and offers a repetitive peak reverse voltage of 600V. It is housed in a TO-220AC package. This component is designed for use as an output rectifier in high-frequency switched-mode power supplies.

Feature Summary

Ultra-fast epitaxial construction
Single-phase rectification capability
High voltage blocking capacity

Applications

Output rectification in high-frequency switched-mode power supplies

Procurement Notes

Verify the specific suffix

Selection Notes

Select this component when designing circuits requiring fast recovery characteristics for high-frequency operation. Ensure the thermal management solution accommodates the TO-220AC package constraints. Confirm that the 600V reverse voltage rating exceeds the maximum transient voltages present in the target application circuit to ensure reliable long-term performance.

Part Context

This part belongs to the BYR29 series of ultra-fast rectifier diodes produced by NXP Semiconductors (formerly Philips). The series is engineered for efficiency in power conversion applications. The

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative ultra-fast rectifiers based on electrical ratings and package dimensions before substitution.
