Product Detailed Parameters
- Description：DIODE STANDARD 600V 9A TO220AC
- Series：*
- Mfr：WeEn Semiconductors
- Package：Bulk
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：600 V
- Current - Average Rectified (Io)：9A
- Voltage - Forward (Vf) (Max) @ If：1.9 V @ 8 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：35 ns
- Current - Reverse Leakage @ Vr：50 µA @ 600 V
- Capacitance @ Vr, F：-
- Mounting Type：Through Hole
- Package / Case：TO-220-2
- Supplier Device Package：TO-220AC
- Operating Temperature - Junction：150°C (Max)
- Grade：-
- Qualification：-
Download product information
Overview

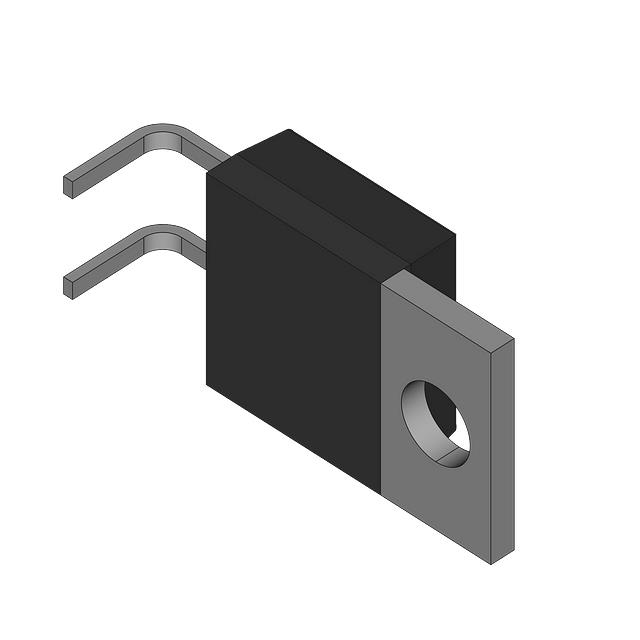

The BYV29F-600,127 is a fast recovery rectifier manufactured by WeEn Semiconductors. It features a single diode configuration housed in a TO-220FP package for through-hole mounting. The device supports a maximum repetitive peak reverse voltage of 600 V and a continuous forward current of 9 A. Key electrical characteristics include a maximum forward voltage of 1.9 V, a peak non-repetitive surge current of 100 A, and a reverse leakage current of 50 uA. The component operates within a temperature range from -40°C to +150°C junction temperature.
Feature Summary
- Fast recovery rectification capability designed for high-speed switching applications
- Robust thermal performance with low thermal resistance in the TO-220FP package
- High surge current handling capacity for transient protection
Applications
- High-frequency power supply circuits
- Free-wheeling rectification in DC-DC converters
- General-purpose rectification in industrial electronics
Procurement Notes
Verify the exact suffix against official manufacturer documentation to confirm pinout and packaging variations. Ensure the procurement channel provides valid traceability certificates. Confirm RoHS compliance status directly with the supplier prior to ordering. Cross-reference the datasheet revision date to ensure compatibility with current design specifications.
Selection Notes
Select this component when a 600 V blocking voltage and 9 A continuous current rating are required. The fast recovery characteristic makes it suitable for frequencies exceeding standard rectifier capabilities. Consider the TO-220FP package for efficient heat dissipation in space-constrained through-hole designs. Evaluate thermal management requirements based on the specified junction temperature limits.
Part Context
This part belongs to the BYV29 series of fast recovery diodes from WeEn Semiconductors. The series offers various voltage ratings while maintaining consistent current handling and package styles. The BYV29F-600 variant specifically targets applications requiring reliable high-voltage rectification with fast switching speeds.
