Product Detailed Parameters

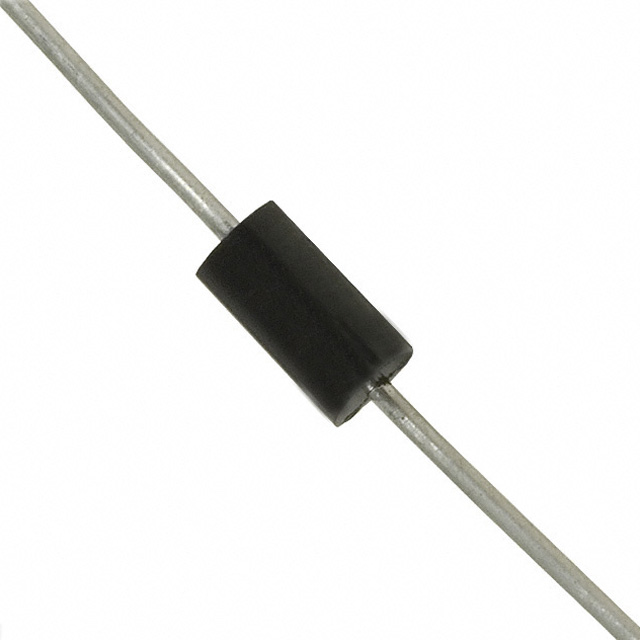

- Description：DIODE STANDARD 200V 1.5A DO15
- Series：-
- Mfr：STMicroelectronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：200 V
- Current - Average Rectified (Io)：1.5A
- Voltage - Forward (Vf) (Max) @ If：1.2 V @ 4.5 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：35 ns
- Current - Reverse Leakage @ Vr：10 µA @ 200 V
- Capacitance @ Vr, F：-
- Mounting Type：Through Hole
- Package / Case：DO-204AC, DO-15, Axial
- Supplier Device Package：DO-15
- Operating Temperature - Junction：150°C (Max)
- Grade：-
- Qualification：-
Download product information
Overview
The BYW100-200RL is a high-efficiency fast recovery rectifier diode from STMicroelectronics, designed for switching mode base drive and transistor circuits. It features very low conduction losses and negligible switching losses due to low forward and reverse recovery times. The device operates with a repetitive peak reverse voltage of 200 V and an average forward current of 1.5 A at 95°C. It supports a surge non-repetitive forward current of 50 A and functions within a junction temperature range up to +150 °C. Packaged in DO-15, it offers optimized thermal performance for efficient power handling.
Feature Summary
- Very low conduction losses and negligible switching losses
- Low forward and reverse recovery times
- Suitable for switching mode base drive and transistor circuits
Applications
- Switching mode base drive circuits
- Transistor circuits
- High efficiency rectification applications
Procurement Notes
Verify the specific ordering code BYW100-200RL against official STMicroelectronics documentation to confirm package type and delivery mode. Ensure design parameters align with absolute ratings, particularly maximum operating junction temperature and lead soldering limits. Confirm that application conditions match the specified test conditions for electrical characteristics.
Selection Notes
Select this component when low conduction and switching losses are critical for system efficiency. Consider the DO-15 package constraints and thermal resistance values for heatsinking requirements. Evaluate the 200 V reverse voltage rating against circuit peak voltages to ensure adequate safety margins under all operating conditions.
Part Context
This part belongs to the BYW100 series of high-efficiency fast recovery rectifiers. These devices are engineered to provide superior performance in high-frequency switching applications compared to standard rectifiers. The series emphasizes reduced energy loss during both conduction and recovery phases.
Replacement Considerations
Check datasheets for alternative fast recovery diodes with matching 200 V reverse voltage and similar forward current capabilities. Verify package compatibility and thermal resistance specifications before substitution.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature is +150 °C.
What is the typical reverse recovery time?
The typical reverse recovery time (trr) is 35 ns under specified test conditions.
