C16A50Z4

$2.77

Description：TERMINATION 16W 4GHZ 50 OHM SMD
Series：-
Mfr：TTM Technologies, Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:75e3560c4af3 Category: RF Misc ICs and Modules Brand: TTM Technologies, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：TERMINATION 16W 4GHZ 50 OHM SMD
Series：-
Mfr：TTM Technologies, Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Termination
Frequency：0Hz ~ 4GHz
RF Type：DCS, GSM, PCS
Secondary Attributes：16W
Mounting Type：Surface Mount
Package / Case：2-SMD, No Lead
Supplier Device Package：SMD
Grade：-
Qualification：-

Download product information

C16A50Z4

Overview

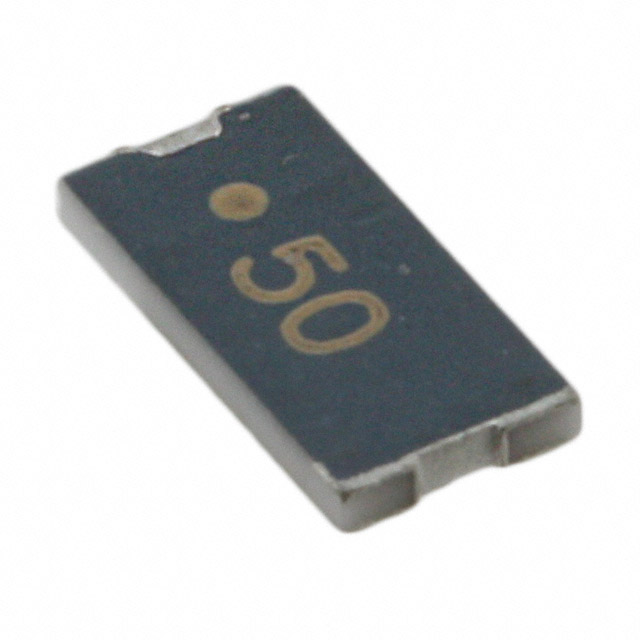

The C16A50Z4 is a high-frequency surface mount termination resistor manufactured by TTM Technologies. It provides a nominal resistance of 50 Ohms with a tolerance of 2 percent and a power rating of 16 Watts. The component operates effectively from DC to 4.0 GHz, ensuring stable impedance matching in RF circuits. It supports an operating temperature range from -55°C to +125°C. The device utilizes SMD/SMT end types for automated assembly and is available in Reel, Cut Tape, and MouseReel packaging formats.

Feature Summary

Surface mount design optimized for high-frequency applications up to 4.0 GHz
Robust thermal performance supporting operation between -55°C and +125°C
Precise 50 Ohm impedance with 2% tolerance for accurate signal termination

Applications

High frequency circuit termination
RF system impedance matching
Commercial wireless band applications

Procurement Notes

Verify the specific package variant required, as the C16A50Z4 is available in Reel, Cut Tape, and MouseReel configurations. Confirm that the selected packaging aligns with your production line capabilities and handling requirements. Ensure compatibility with standard SMD/SMT assembly processes before finalizing procurement orders.

Selection Notes

Select this component when a 16 Watt power rating and 50 Ohm impedance are required for frequencies extending to 4.0 GHz. The wide operating temperature range makes it suitable for demanding environments. Consider the physical dimensions and SMD footprint constraints during PCB layout to ensure proper thermal dissipation and mechanical stability.

Part Context

This part belongs to the Xinger III series of SMD terminations from TTM Technologies. These components are designed for small footprints while handling significant power loads. They are commonly used in commercial wireless bands and general RF infrastructure where reliable high-frequency termination is critical.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the source documentation. Verify pinout compatibility and electrical specifications against potential alternatives before substitution.
