C200N50Z4

Overview

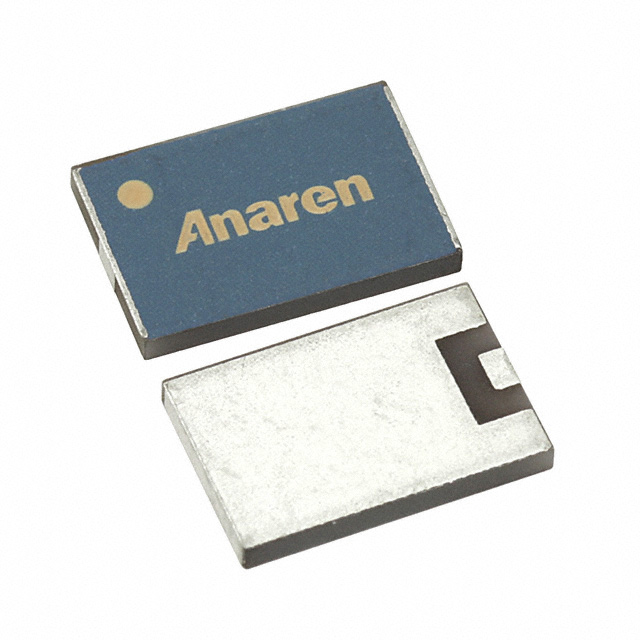

The C200N50Z4 is an RF IC termination component manufactured by TTM Technologies, Inc. Designed for surface mount applications, this device operates within a frequency range of 0Hz to 2.2GHz. It features a nominal impedance of 50 Ohms and supports a power rating of 200W. The component is housed in a 2-SMD, leadless package and is suitable for DCS, GSM, and PCS radio frequency types.

Feature Summary

• Provides reliable signal termination for high-power RF circuits
• Supports wideband operation from DC up to 2.2GHz
• Engineered for direct surface mount integration

Applications

• DCS cellular network infrastructure
• GSM base station systems
• PCS communication equipment

Procurement Notes

Verify the specific suffix Z4 against official manufacturer documentation to confirm exact packaging configuration and compliance status. Ensure that the required 200W power handling capability aligns with the thermal design of the target application circuit. Confirm RoHS compliance requirements match the project specifications before finalizing procurement orders.

Selection Notes

Select this component when a high-power 50-ohm load is required for frequencies extending to 2.2GHz. The SMD form factor facilitates automated assembly processes. Consider the physical dimensions of the 2-SMD leadless package during layout planning to ensure adequate spacing and thermal dissipation paths are maintained on the printed circuit board.

Part Context

This part belongs to the C200N50 series of RF terminations produced by TTM Technologies. These components are specialized for managing reflected energy in transmission lines. The product line targets wireless communication standards requiring robust power handling capabilities in compact surface-mount formats.

Replacement Considerations

Consult official cross-reference lists for verified substitutes. Generic equivalents may not match the 200W power rating or 2.2GHz bandwidth specifications.
