C6D04065E

Overview

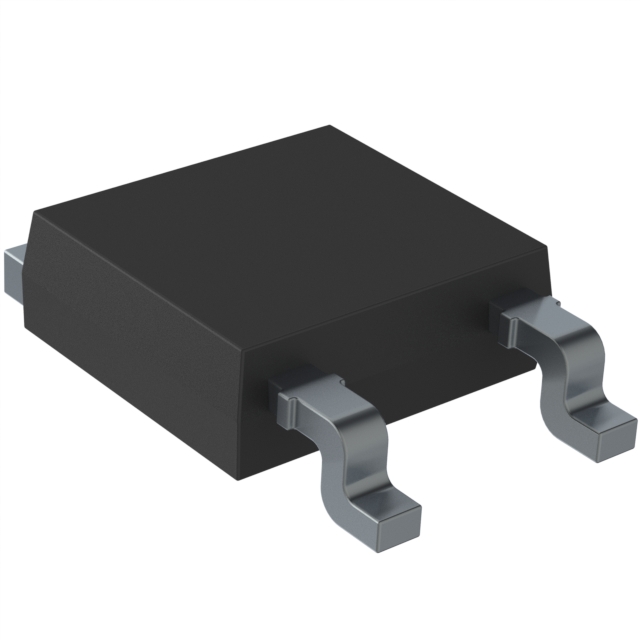

The C6D04065E is a 650 V, 4 A Silicon Carbide Schottky Diode from Wolfspeed. It utilizes 6th generation technology to deliver low forward voltage drop and zero reverse recovery current. The device operates with a continuous forward current of 16 A at 25 °C case temperature and supports junction temperatures up to 175 °C. Packaged in TO-252-2, it features a thermal resistance of 2.89 °C/W.

Feature Summary

• Zero reverse recovery current and zero forward recovery voltage
• Temperature-independent switching behavior
• Positive temperature coefficient on forward voltage
• Low leakage current

Applications

• Switch mode power supplies (SMPS)
• Server/telecom power supplies
• Industrial power supplies
• Solar applications
• UPS systems

Procurement Notes

Verify the specific part number C6D04065E against official Wolfspeed documentation to confirm current availability and revision status. Ensure compatibility with TO-252-2 footprint requirements. Check for RoHS compliance declarations if required by target market regulations. Confirm thermal management design aligns with the specified junction-to-case thermal resistance.

Selection Notes

Select this component for designs requiring high efficiency and reduced heat sink size due to low forward voltage drop. The positive temperature coefficient allows for safe parallel operation without thermal runaway. Consider the 175 °C maximum junction temperature for high-temperature environments. Verify that the 650 V rating meets the circuit's peak reverse voltage requirements.

Part Context

This diode belongs to Wolfspeed's silicon carbide product line, designed to replace traditional silicon rectifiers. It is part of the 6th generation SiC technology family, offering improved performance over previous iterations. The TO-252-2 package facilitates surface-mount integration into compact power electronics designs.

Replacement Considerations

No public confirmed substitute part numbers are provided in the source material.
