C8051T600-GSR

Overview

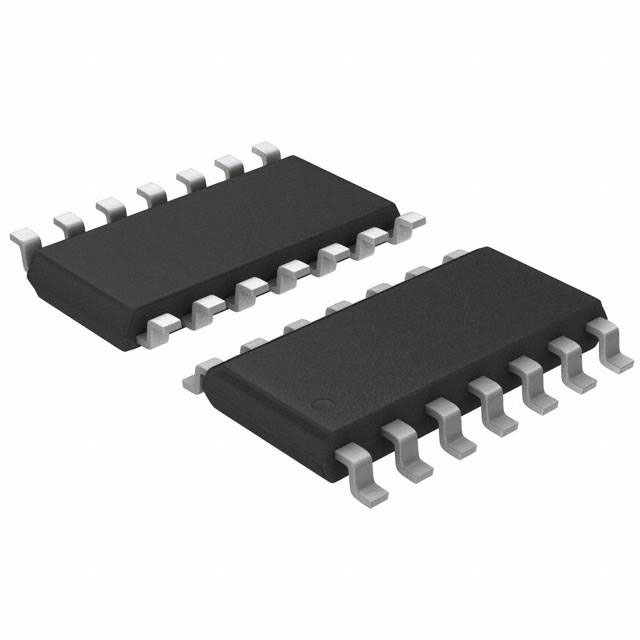

The C8051T600-GSR is a mixed-signal microcontroller from the Silicon Labs C8051T series, featuring an 8-bit CIP-51 core with pipelined architecture. It includes 1.5 kB of byte-programmable EPROM and 256 bytes of internal data RAM. The device integrates a 10-bit ADC supporting up to 500 ksps conversion rates and up to 8 external inputs. Operating voltage ranges from 1.8 V to 3.6 V, with an on-chip LDO for core supply. It supports clock frequencies up to 25 MHz, providing 25 MIPS throughput. The component operates within a temperature range of –40 °C to +85 °C and utilizes a SOIC-14 package.

Feature Summary

• Features a high-speed 8051-compatible core with pipelined instruction execution for efficient processing.
• Integrates a 10-bit analog-to-digital converter with programmable window detection and built-in temperature sensing capabilities.
• Includes hardware-enhanced serial communication interfaces such as UART and SMBus for reliable data transfer.
• Provides non-intrusive in-system debugging via an on-chip debug circuitry supporting breakpoints and memory inspection.

Applications

• Battery-powered sensor nodes requiring low power consumption
• Industrial control systems utilizing analog signal acquisition
• Portable instrumentation devices with embedded monitoring functions

Procurement Notes

Verify that the specific ordering suffix matches the required package type and tape-and-reel configuration. Confirm the component status as Not Recommended for New Designs (NRND) before initiating procurement. Ensure compatibility with existing design constraints due to the obsolete status. Check for RoHS compliance and lead-free specifications relevant to your manufacturing standards.

Selection Notes

Select this component only if legacy support for byte-programmable EPROM is strictly required. Evaluate the limited pin count and peripheral set against current project needs. Consider alternative modern microcontrollers with Flash memory and expanded I/O options for new designs. Assess the availability of development tools and documentation for the C8051T family.

Part Context

The C8051T600 belongs to the C8051T series of mixed-signal microcontrollers designed for applications needing analog integration with digital control. This series emphasizes cost-effective solutions with integrated peripherals. The C8051T600 specifically targets applications where small code size and moderate analog performance are sufficient. It represents an earlier generation of Silicon Labs 8-bit MCUs.

Replacement Considerations

Public confirmed substitute part numbers: None identified in official documentation. The C8051T60x series is marked as Not Recommended for New Designs. No direct equivalent replacement is listed in the provided datasheet.
