Product Detailed Parameters
- Description：DIODE STANDARD 75V 150MA 1005
- Series：-
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：75 V
- Current - Average Rectified (Io)：150mA
- Voltage - Forward (Vf) (Max) @ If：1 V @ 50 mA
- Speed：Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr)：4 ns
- Current - Reverse Leakage @ Vr：2.5 µA @ 75 V
- Capacitance @ Vr, F：4pF @ 1V, 100MHz
- Mounting Type：Surface Mount
- Package / Case：1005 (2512 Metric)
- Supplier Device Package：1005
- Operating Temperature - Junction：-40°C ~ 125°C
- Grade：-
- Qualification：-
Download product information
Overview

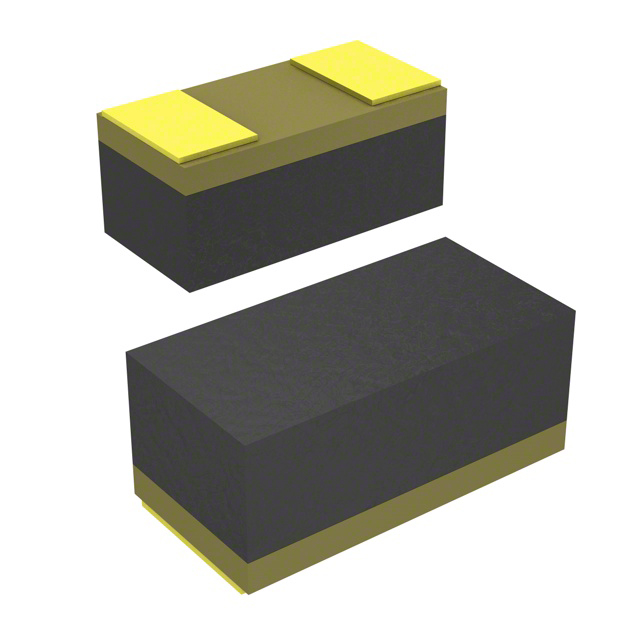

The Bourns CD1005-S01575 is a high-speed switching chip diode in a 1005 (2512 metric) leadless package. It features a maximum forward voltage of 1.0 V at 50 mA, a repetitive peak reverse voltage of 100 V, and an average forward current rating of 150 mA. The device exhibits a maximum reverse recovery time of 4 ns and a terminal capacitance of 4 pF at 100 MHz. It operates within a junction temperature range of -40 °C to +125 °C with a power dissipation capacity of 300 mW.
Feature Summary
- Leadless construction for PCB real estate savings
- High-speed switching capability with low reverse recovery time
- RoHS compliant with Cu/Ni/Au plated terminations
Applications
- Cellular phones
- PDAs
- Desktop PCs and notebooks
- Digital cameras
- MP3 players
Procurement Notes
Verify the specific part number against official manufacturer documentation before procurement. Confirm that the component meets all required electrical specifications for the intended application, including forward voltage, reverse voltage, and current ratings. Ensure compliance with RoHS directives and lead-free manufacturing processes as stated in the datasheet. Check for any updates regarding availability or design recommendations.
Selection Notes
Select this component for applications requiring compact high-speed switching in portable electronics. The 1005 package offers significant size reduction compared to competitive parts. Consider the 150 mA average forward current and 100 V reverse voltage ratings when designing circuits. Verify thermal management requirements given the 300 mW power dissipation limit and operating temperature range.
Part Context
This component belongs to Bourns' Switching Chip Diode Series available in 0603 and 1005 sizes. These diodes are designed for digital signal switching in portable communications, computing, and video equipment markets. The series provides silicon diodes with minimal packaging overhead, conforming to JEDEC standards for compatibility with standard surface mount equipment.
Replacement Considerations
The datasheet indicates this series is currently available but not recommended for new designs. Users should verify actual performance in specific applications. No specific substitute part numbers are provided in the source material.
