Product Detailed Parameters
- Description：DIODE SCHOTTKY 40V 1A 123D
- Series：-
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：40 V
- Current - Average Rectified (Io)：1A
- Voltage - Forward (Vf) (Max) @ If：500 mV @ 1 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：200 µA @ 40 V
- Capacitance @ Vr, F：110pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：Chip, Concave Terminals
- Supplier Device Package：123D
- Operating Temperature - Junction：-55°C ~ 125°C
- Grade：-
- Qualification：-
Download product information
Overview

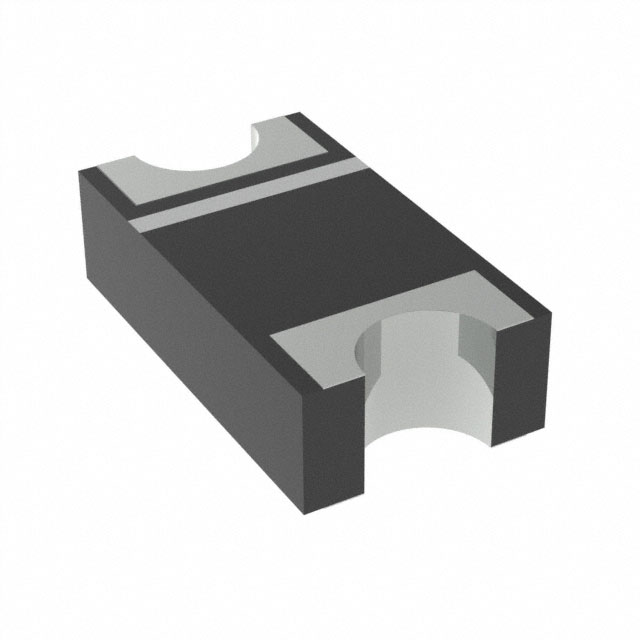

The CD123D-B140R is a Schottky Barrier Chip Diode from the CD123D-B1xR series, manufactured by Bourns Inc. It features a leadless SOD-123 size package and supports a maximum average forward rectified current of 1 A at 55 °C. The device has a maximum repetitive peak reverse voltage of 40 V and a peak forward surge current rating of 20 A. Electrical characteristics include a typical instantaneous forward voltage of 0.50 V at 1.0 A and a maximum repetitive peak reverse current of 0.2 mA. Junction capacitance is typically 110 pF at 4 V reverse bias. Thermal resistance values are 190 °C/W junction-to-ambient and 60 °C/W junction-to-case.
Feature Summary
- Leadless chip form factor compatible with standard surface-mount pick-and-place equipment
- Low forward voltage drop for improved power efficiency
- RoHS compliant and halogen-free construction
Applications
- Switch Mode Power Supplies (SMPS)
- Portable equipment batteries
- High frequency rectification
- DC/DC converters
- Telecommunications
Procurement Notes
Verify component authenticity through authorized Bourns distributors or direct channels. Confirm RoHS compliance status against the latest datasheet revision. Ensure storage conditions adhere to moisture sensitivity level requirements prior to soldering. Validate that the specific ordering suffix matches the required electrical parameters for the target application design.
Selection Notes
Select this component for applications requiring compact SOD-123 footprint integration. Consider the 1 A current rating and 40 V reverse voltage limits during circuit design. Evaluate thermal management needs based on the specified junction-to-ambient resistance. Compare forward voltage specifications against alternative Schottky diodes to ensure optimal system efficiency.
Part Context
This part belongs to the CD123D-B1xR Schottky Barrier Chip Diode Series. The series provides silicon rectification in a compact package designed for portable communications, computing, and video equipment. It addresses industry demands for smaller electronic components and minimal PCB real estate usage while maintaining high current capability.
Replacement Considerations
Consult official Bourns documentation for verified substitute part numbers within the CD123D-B series. Cross-reference electrical parameters such as forward voltage and reverse leakage current when evaluating alternatives.
