Product Detailed Parameters
- Description：DIODE SCHOTTKY 40V 1A 2010
- Series：-
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：40 V
- Current - Average Rectified (Io)：1A
- Voltage - Forward (Vf) (Max) @ If：550 mV @ 1 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：100 µA @ 40 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount
- Package / Case：Chip, Concave Terminals
- Supplier Device Package：2010
- Operating Temperature - Junction：-40°C ~ 125°C
- Grade：-
- Qualification：-
Download product information
Overview

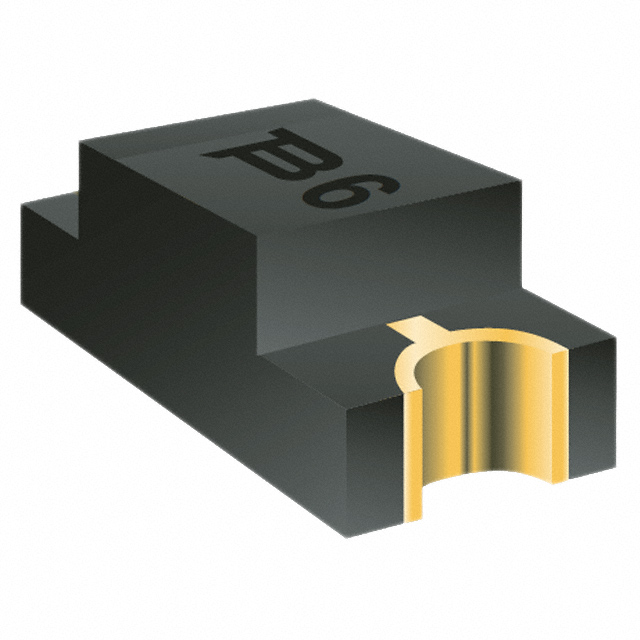

The CD2010-B140 is a surface mount Schottky rectifier diode manufactured by Bourns Inc. It features a compact 2010 chip package designed for PCB real estate savings. The device provides an average forward rectified current of 1.0 A and a repetitive peak reverse voltage of 40 V. Electrical characteristics include an instantaneous forward voltage ranging from 0.45 V to 0.55 V at 1.0 A, with a maximum reverse leakage current of 0.1 mA. The component supports a peak forward surge current of 70 A and operates within a junction temperature range of -40 °C to +125 °C.
Feature Summary
- Low power loss and high efficiency operation
- Lead-free construction compliant with RoHS standards
- UL 94V-0 classification for flame retardancy
- Flat configuration compatible with standard pick-and-place equipment
Applications
- High frequency switching power supplies
- Inverters
- Free wheeling circuits
- Polarity protection
Procurement Notes
Verify the specific datasheet revision date before procurement, as specifications are subject to change without notice. Confirm that the required quantity matches the standard tape and reel packaging format. Ensure the application environment remains within the specified thermal limits and does not exceed the rated electrical parameters defined in the official documentation.
Selection Notes
Select this component when space constraints require a small 2010 footprint while maintaining a 1 A current rating. It is suitable for applications requiring low forward voltage drop and fast switching speeds. Verify compatibility with existing JEDEC SOD-106 footprints during the design phase to ensure proper mounting and soldering reliability on the printed circuit board.
Part Context
This part belongs to Bourns' series of Schottky Rectifier Diodes designed for portable communications, computing, and video equipment. The 2010 size format offers significant PCB real estate savings compared to competitive parts. The product utilizes tin-plated connectors and FRP substrate with epoxy underfill for mechanical stability.
Replacement Considerations
The datasheet indicates the device mounts onto existing JEDEC SOD-106 footprints. No specific substitute part numbers are provided in the source material.
