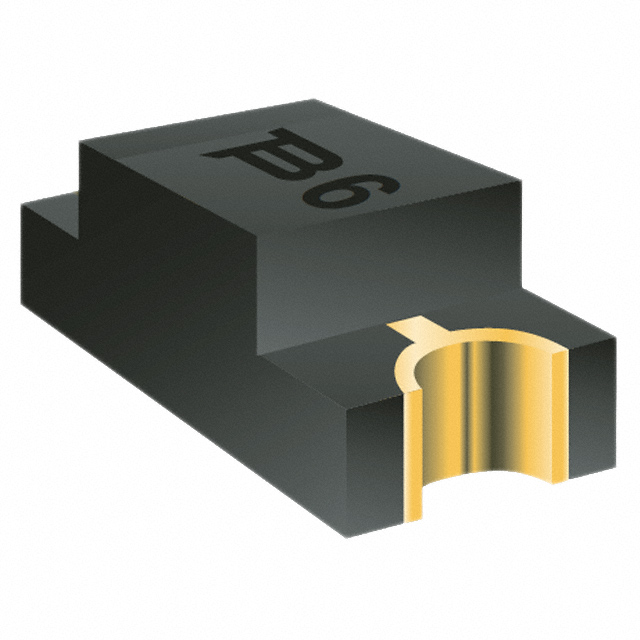

CD2010-B160

$0.09

Description：DIODE SCHOTTKY 60V 1A 2010
Series：-
Mfr：Bourns Inc.
Package：Tape & Reel (TR)

SKU:42c93b816de0 Category: Single Diodes Brand: Bourns Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE SCHOTTKY 60V 1A 2010
Series：-
Mfr：Bourns Inc.
Package：Tape & Reel (TR)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：60 V
Current - Average Rectified (Io)：1A
Voltage - Forward (Vf) (Max) @ If：580 mV @ 1 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：500 µA @ 60 V
Capacitance @ Vr, F：-
Mounting Type：Surface Mount
Package / Case：Chip, Concave Terminals
Supplier Device Package：2010
Operating Temperature - Junction：125°C (Max)
Grade：-
Qualification：-

Download product information

CD2010-B160

Overview

The CD2010-B160 is a surface mount Schottky rectifier diode manufactured by Bourns Inc. It features a compact 2010 package format designed for PCB real estate savings. The device provides an average forward rectified current of 1.0 A and a repetitive peak reverse voltage of 60 V. Key electrical characteristics include a maximum instantaneous forward voltage of 0.58 V at 1.0 A, a reverse leakage current of 0.5 mA at rated DC voltage (25°C), and a peak forward surge current capability of 50 A. The component operates within a junction temperature range up to +125°C.

Feature Summary

Low power loss and high efficiency due to low forward voltage drop
Compact chip package size offering significant PCB real estate savings compared to competitive parts
Lead-free construction compliant with RoHS directives
UL 94V-0 classification for flame retardancy

Applications

High frequency switching power supplies
Inverters
Free wheeling applications
Polarity protection circuits

Procurement Notes

Verify the specific ordering code matches the required voltage and current ratings before purchase. Confirm that the tape and reel packaging aligns with automated pick-and-place equipment requirements. Ensure the application environment remains within the specified thermal limits and does not exceed the maximum junction temperature or surge current capabilities defined in the datasheet.

Selection Notes

Select this component when space constraints require a small surface mount footprint alongside moderate current handling needs. The 2010 package size is suitable for portable communications and computing equipment. Consider the 60 V reverse voltage rating and 1 A forward current capacity to ensure adequate margin for the target circuit design.

Part Context

This part belongs to the Bourns Chip Diode series, specifically utilizing the 2010 surface mount package format. The 'B' designation indicates a Schottky barrier diode technology, while '160' specifies the 1 Ampere current and 60 Volt voltage ratings. These devices are engineered to conform to JEDEC standards for ease of handling.

Replacement Considerations

No direct substitute part numbers are documented in the provided source material. Users must evaluate alternative components based on matching electrical parameters such as 1 A forward current, 60 V reverse voltage, and compatible SMD package dimensions.
