Product Detailed Parameters

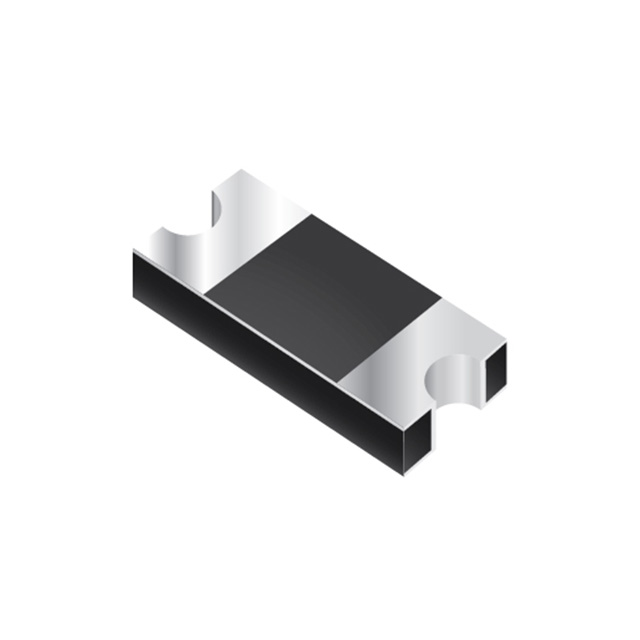

- Description：DIODE SCHOTTKY 60V 3A 2SMD
- Series：-
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：60 V
- Current - Average Rectified (Io)：3A
- Voltage - Forward (Vf) (Max) @ If：700 mV @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：500 µA @ 60 V
- Capacitance @ Vr, F：250pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：2-SMD, No Lead
- Supplier Device Package：2-SMD
- Operating Temperature - Junction：-55°C ~ 125°C
- Grade：-
- Qualification：-
Download product information
Overview
The CD214A-B360R is a Schottky Barrier Rectifier Chip Diode manufactured by Bourns Inc. It features a maximum average forward current of 3 A and a maximum repetitive peak reverse voltage of 60 V. The device operates within a junction temperature range of -55 to +125 °C and supports a peak forward surge current of 80 A. Electrical characteristics include a typical instantaneous forward voltage of 0.42 V at 1 A and 0.58 V at 3 A, with a maximum DC reverse current of 0.2 mA. Typical junction capacitance is 135 pF.
Feature Summary
- RoHS compliant construction
- Low profile design
- UL 94V-0 classification
Applications
- Switch Mode Power Supplies
- Portable equipment batteries
- High frequency rectification
- DC/DC Converters
- Telecommunications
Procurement Notes
Verify the specific datasheet version before procurement, as specifications are subject to change without notice. Confirm that the component meets all applicable safety-related requirements for your specific device or application environment. Ensure compatibility with standard surface mount pick-and-place equipment during assembly planning.
Selection Notes
Select this component for applications requiring compact SMA-compatible packaging with high efficiency. Consider the low forward voltage drop for power loss reduction in portable electronics. Verify thermal resistance parameters against your PCB copper pad layout to ensure adequate heat dissipation within the specified operating temperature range.
Part Context
This part belongs to the CD214A-B3xR series of Schottky Barrier Rectifier Chip Diodes. The series addresses the industry demand for smaller electronic components in portable communications and computing equipment. It utilizes a DO-214AC (SMA) compatible package format designed for minimal footprint on printed circuit boards.
Replacement Considerations
Cross-reference with other CD214A-B3xR variants such as CD214A-B320R or CD214A-B340R if different voltage ratings are required. Ensure any substitute maintains the same 3 A current rating and SMA package dimensions for mechanical compatibility.
