Product Detailed Parameters
- Description：DIODE STANDARD 800V 1A DO214AC
- Series：CD214A-RS1x
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR)
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：800 V
- Current - Average Rectified (Io)：1A
- Voltage - Forward (Vf) (Max) @ If：1.3 V @ 1 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：300 ns
- Current - Reverse Leakage @ Vr：5 µA @ 800 V
- Capacitance @ Vr, F：8.2pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：DO-214AC, SMA
- Supplier Device Package：DO-214AC (SMA)
- Operating Temperature - Junction：-
- Grade：-
- Qualification：-
Download product information
Overview

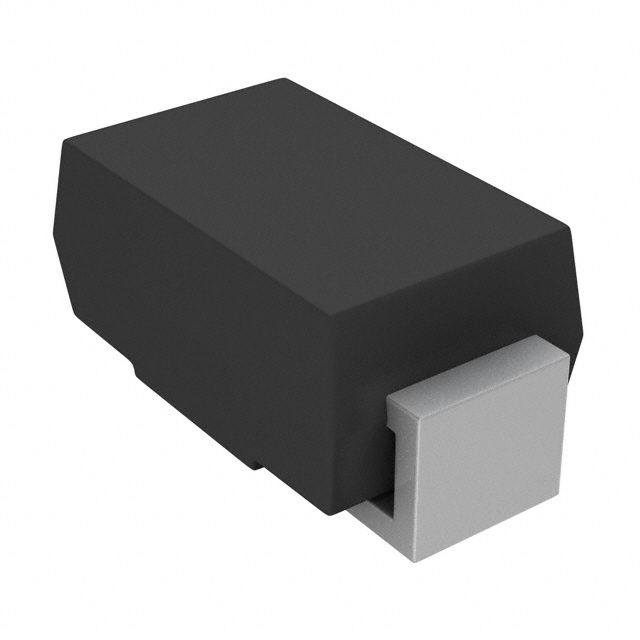

The Bourns CD214A-RS1K is a glass passivated fast response rectifier chip diode housed in a DO-214AC (SMA) surface-mount package. It provides a maximum average forward current of 1 A and a repetitive peak reverse voltage of 800 V. The device features a typical instantaneous forward voltage of 1.30 V at 1 A, a maximum reverse recovery time of 300 ns, and a typical junction capacitance of 8.2 pF. It operates within a temperature range of -65°C to +175°C.
Feature Summary
- Glass passivation for enhanced stability
- Low profile design compatible with SMA footprint
- Fast response characteristics for high frequency applications
- RoHS compliant and halogen-free construction
Applications
- Switch Mode Power Supplies
- DC/DC Converters
- High frequency rectification
- Telecommunications equipment
Procurement Notes
Verify the specific part number against official manufacturer documentation before procurement. Confirm that the required voltage rating and thermal performance align with your circuit design parameters. Ensure compliance with relevant environmental directives applicable to your region. Check for any updates to the datasheet regarding mechanical dimensions or electrical characteristics prior to finalizing orders.
Selection Notes
Select this component when an 800 V blocking capability is required alongside a 1 A continuous current rating. The fast recovery time makes it suitable for high-frequency switching environments where minimizing reverse recovery losses is critical. Consider the thermal resistance and operating temperature limits to ensure reliable performance under expected load conditions.
Part Context
This component belongs to the CD214A-RS1x series of fast response rectifiers from Bourns. The series offers various voltage ratings ranging from 200 V to 1000 V, all sharing the same 1 A current rating and compact SMA-compatible package. This allows designers to standardize on a single footprint while adjusting voltage specifications based on application needs.
Replacement Considerations
Other parts within the CD214A-RS1x series such as RS1J (600V) or RS1M (1000V) may be considered if voltage requirements differ. Cross-referencing with other manufacturers' SMA packages requires verification of forward voltage, reverse recovery time, and thermal characteristics to ensure functional equivalence.
