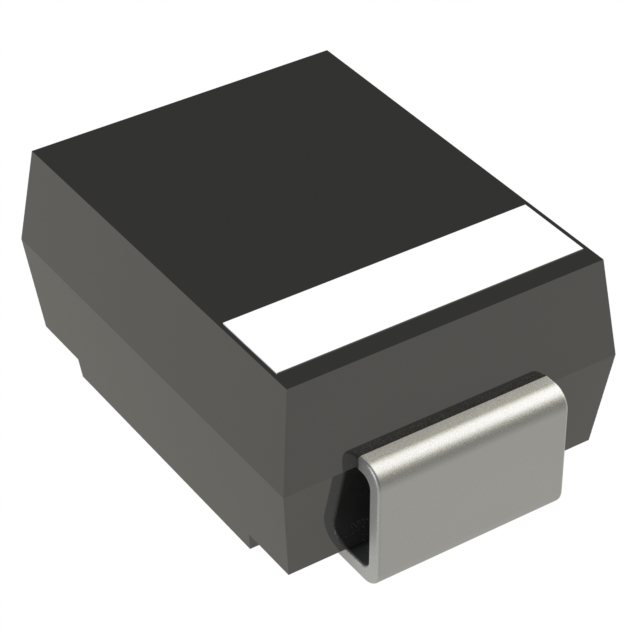

CD214C-B320LF

Description：DIODE SCHOTTKY 20V 3A DO214AB
Series：-
Mfr：Bourns Inc.
Package：Tape & Reel (TR)

SKU:6566ed9c0c2b Category: Single Diodes Brand: Bourns Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE SCHOTTKY 20V 3A DO214AB
Series：-
Mfr：Bourns Inc.
Package：Tape & Reel (TR)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：20 V
Current - Average Rectified (Io)：3A
Voltage - Forward (Vf) (Max) @ If：500 mV @ 3 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：500 µA @ 20 V
Capacitance @ Vr, F：250pF @ 4V, 1MHz
Mounting Type：Surface Mount
Package / Case：DO-214AB, SMC
Supplier Device Package：DO-214AB (SMC)
Operating Temperature - Junction：-55°C ~ 125°C
Grade：-
Qualification：-

Download product information

CD214C-B320LF

Overview

The Bourns CD214C-B320LF is a Schottky Barrier Rectifier Chip Diode housed in the SMC (DO-214AB) surface-mount package. It features a repetitive peak reverse voltage of 20 V and an average forward current rating of 3 A. The device exhibits a maximum forward voltage of 0.5 V at 3 A and a maximum reverse current of 5.0 µA at rated voltage. It supports a peak forward surge current of 100 A and operates within a junction temperature range of -55 °C to +150 °C.

Feature Summary

Utilizes Schottky barrier technology for low forward voltage drop and high switching efficiency
Encapsulated in compact SMC (DO-214AB) molded plastic package for PCB real estate savings
Designed with flat configuration to minimize roll-away during standard pick-and-place handling

Applications

Rectification in portable communications equipment
Power supply circuits in computing hardware
Video equipment power management systems

Procurement Notes

Verify component authenticity through authorized distribution channels. Confirm RoHS compliance status and lead-free termination specifications against the latest manufacturer documentation. Ensure storage conditions adhere to specified temperature limits to maintain device integrity prior to assembly.

Selection Notes

Select this component for applications requiring 3 A continuous current handling with a 20 V reverse blocking capability. The SMC package is suitable for space-constrained designs. Verify thermal management requirements against the specified junction-to-lead thermal resistance for the target operating environment.

Part Context

This part belongs to the CD214C-B3x series of Schottky Barrier Rectifiers from Bourns Inc. The series offers various voltage ratings from 20 V to 60 V within the same DO-214AB footprint, allowing for design flexibility while maintaining consistent mechanical dimensions and mounting characteristics across the product family.
