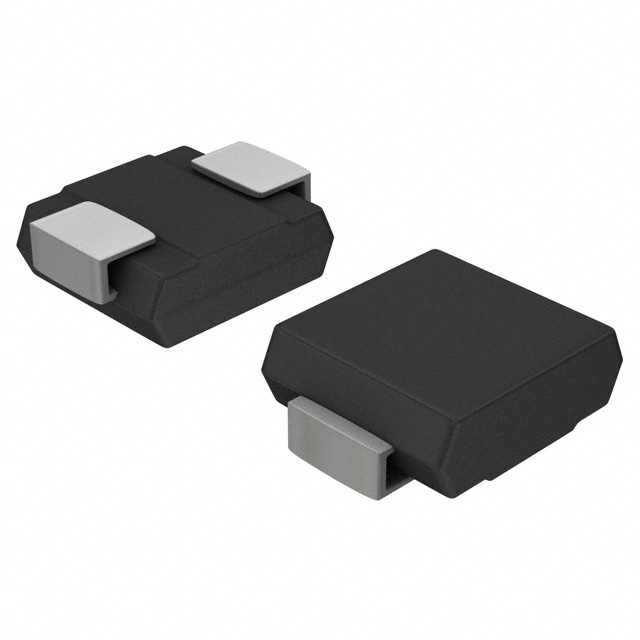

CD214C-R350

Description：DIODE STANDARD 50V 3A SMC
Series：-
Mfr：Bourns Inc.
Package：Tape & Reel (TR)

SKU:c66274a03c65 Category: Single Diodes Brand: Bourns Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE STANDARD 50V 3A SMC
Series：-
Mfr：Bourns Inc.
Package：Tape & Reel (TR)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：50 V
Current - Average Rectified (Io)：3A
Voltage - Forward (Vf) (Max) @ If：700 mV @ 3 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：500 µA @ 50 V
Capacitance @ Vr, F：250pF @ 4V, 1MHz
Mounting Type：Surface Mount
Package / Case：DO-214AB, SMC
Supplier Device Package：SMC (DO-214AB)
Operating Temperature - Junction：-65°C ~ 175°C
Grade：-
Qualification：-

Download product information

CD214C-R350

Overview

The CD214C-R350 is a glass passivated rectifier diode manufactured by Bourns Inc. It features a maximum repetitive peak reverse voltage of 50 V and a maximum average forward rectified current of 3.0 A. The device exhibits a typical junction capacitance of 40 pF and a maximum instantaneous forward voltage of 1.15 V at 3 A. Peak forward surge current capability is rated at 100 A for an 8.3 ms single half-sine-wave pulse. Thermal resistance from junction to lead is 10 °C/W, with an operating temperature range spanning -65 °C to +175 °C.

Feature Summary

Glass passivated chip construction
Low reverse leakage current
Low forward voltage drop
High current capability

Applications

Rectification in portable communications equipment
Rectification in computing systems
Rectification in video equipment

Procurement Notes

Verify the component datasheet revision date and specific electrical parameters against the manufacturer's official documentation before integration. Confirm RoHS compliance status and termination material specifications. Ensure that the selected package dimensions align with the recommended pad layout for proper surface mount assembly.

Selection Notes

Select this component for applications requiring compact SMC (DO-214AB) packaging with high thermal stability. Consider the 3.0 A continuous current rating and 50 V blocking voltage for low-voltage power supply designs. Evaluate the forward voltage characteristics for efficiency requirements and verify compatibility with standard pick-and-place manufacturing processes.

Part Context

This part belongs to the CD214C-R series of glass passivated rectifiers designed for space-constrained electronics. The series utilizes the DO-214AB (SMC) footprint to minimize PCB real estate usage compared to larger competitive packages. These components are engineered to meet JEDEC standards for handling and reliability in consumer electronic assemblies.
