Product Detailed Parameters
- Description：DIODE SCHOTTKY 100V 8A TO263
- Series：-
- Mfr：Comchip Technology
- Package：Tube
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：100 V
- Current - Average Rectified (Io)：8A
- Voltage - Forward (Vf) (Max) @ If：850 mV @ 8 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：5 mA @ 100 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount

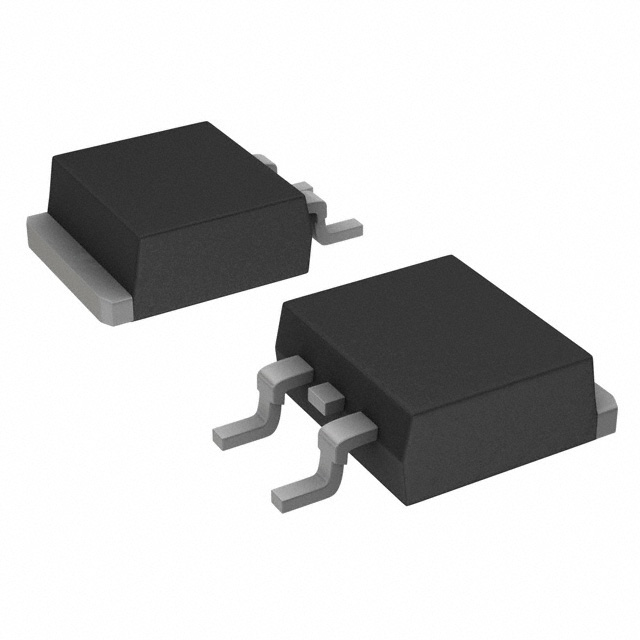

- Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
- Supplier Device Package：TO-263 (D2PAK)
- Operating Temperature - Junction：-50°C ~ 150°C
- Grade：-
- Qualification：-
Download product information
Overview
The CDBD8100-G is a Schottky barrier rectifier manufactured by Comchip Technology. It features a maximum repetitive peak reverse voltage of 100V and an average forward rectified current of 8A. The device utilizes a TO-263 (D²PAK) surface-mount package with three leads. It operates within a junction temperature range of -50°C to +150°C. The component exhibits a maximum forward voltage drop of 850mV at 8A and a maximum reverse leakage current of 5mA at 100V.
Feature Summary
- Schottky barrier construction for low forward voltage drop
- Surface-mount TO-263 packaging for automated assembly
- High thermal stability up to 150°C junction temperature
Applications
- DC-DC converters
- Free-wheeling diodes in power supplies
- Polarity protection circuits
Procurement Notes
Verify the obsolete status of this specific part number before procurement planning, as indicated by distributor data. Confirm that the TO-263 footprint matches your PCB design requirements. Ensure compliance with RoHS standards if required by your manufacturing process. Check for lead-free certification documentation from the manufacturer.
Selection Notes
Select this component when a high-current Schottky rectifier is needed in a surface-mount form factor. The 100V rating suits low-voltage DC conversion applications. Consider the thermal performance of the D²PAK tab for heat dissipation needs. Compare against standard through-hole alternatives if board space allows.
Part Context
This device belongs to Comchip Technology's line of Schottky barrier rectifiers designed for general-purpose power applications. The brand specializes in discrete semiconductor components including diodes and transistors. The product series focuses on providing efficient rectification solutions for modern electronic equipment requiring reliable power management.
