CFSA69383P-30D43F

$42.55

Description：RF ANT 829MHZ/1.45GHZ FLAT PNL N
Series：CBRS
Mfr：TE Connectivity
Package：Bulk

SKU:198facf528a8 Category: RF Antennas Brand: TE Connectivity

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CFSA69383P-30D43F is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT 829MHZ/1.45GHZ FLAT PNL N. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for CFSA69383P-30D43F

Description：RF ANT 829MHZ/1.45GHZ FLAT PNL N
Series：CBRS
Mfr：TE Connectivity
Package：Bulk
RF Family/Standard：Cellular, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：829MHz, 1.45GHz, 2.75GHz
Frequency Range：698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 3.8GHz
Antenna Type：Flat Panel
Number of Bands：3
VSWR：2
Return Loss：-
Gain：5.8dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：0.299" (7.60mm)
Applications：GSM, LTE, WiMax™
Power - Max：50 W

Antennas RF datasheet and documents for CFSA69383P-30D43F

CFSA69383P-30D43F

Antennas RF Overview

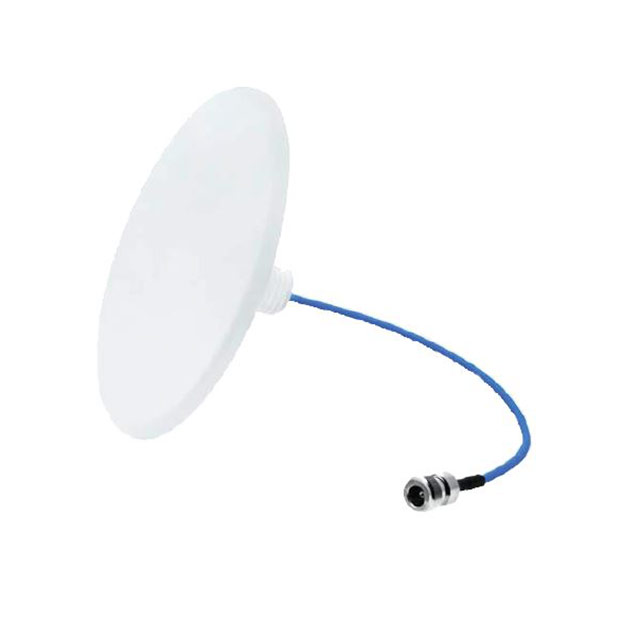

The TE Connectivity CFSA69383P-30D43F is a low-profile, omnidirectional indoor ceiling mount antenna designed for multi-band cellular and WiMAX applications. It operates across frequency ranges of 698MHz to 960MHz and 1690MHz to 4000MHz. The unit features a 30cm cable terminated with a 4.3/10 female connector for panel or ceiling installation. Key electrical specifications include a maximum gain of 5.4dBi, a VSWR of 1.7, and a maximum power handling capacity of 50W. The antenna supports linear horizontal polarization and is constructed to meet RoHS compliance standards.

Antennas RF Feature Summary

Low-profile flat panel design optimized for unobtrusive indoor ceiling mounting
Multi-band capability supporting GSM, LTE, and WiMAX protocols
Integrated 300mm cable with 4.3/10 female connector for direct system integration

Antennas RF Applications

Indoor distributed antenna systems (DAS)
LTE network coverage enhancement
WiMAX infrastructure deployment

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against the system interface before ordering. Confirm that the operating frequency bands align with local regulatory spectrum allocations. Ensure the mounting surface can support the physical weight and dimensions of the unit. Check for updated datasheets regarding environmental ratings and compliance certifications prior to final procurement decisions.

Antennas RF Selection Notes

Select this component when a low-profile, omnidirectional solution is required for indoor wideband coverage. It is suitable for environments where aesthetic integration and minimal visual impact are priorities. Consider the 4.3/10 connector compatibility with existing feeder cables. Evaluate the gain and VSWR specifications against link budget calculations to ensure adequate signal performance for the target coverage area.

Antennas RF Part Context
