CLLR1-02 TR

Description：DIODE STANDARD 200V 1A MELF
Series：-
Mfr：Central Semiconductor Corp
Package：Tape & Reel (TR)

SKU:fe1534d5806e Category: Single Diodes Brand: Central Semiconductor Corp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

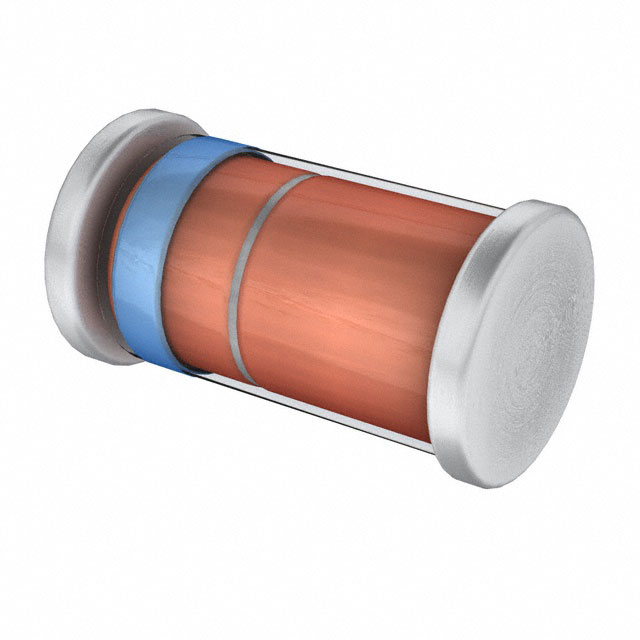

CLLR1-02 TR is listed in the Single Diodes range at ChipApex. The manufacturer field lists Central Semiconductor Corp. Its product description is DIODE STANDARD 200V 1A MELF. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for CLLR1-02 TR

Description：DIODE STANDARD 200V 1A MELF
Series：-
Mfr：Central Semiconductor Corp
Package：Tape & Reel (TR)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：200 V
Current - Average Rectified (Io)：1A
Voltage - Forward (Vf) (Max) @ If：1.1 V @ 1 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：10 µA @ 200 V
Capacitance @ Vr, F：-
Mounting Type：Surface Mount
Package / Case：DO-213AB, MELF
Supplier Device Package：MELF
Operating Temperature - Junction：-65°C ~ 175°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for CLLR1-02 TR

CLLR1-02 TR

Single Diodes Overview

The CLLR1-02 TR is a single-element silicon rectifier diode manufactured by Central Semiconductor Corp. It features a maximum repetitive peak reverse voltage of 200V and an average forward rectified current rating of 1A. The component utilizes a leadless plastic MELF-2 package, suitable for surface-mount applications. It is designed for general-purpose rectification tasks requiring reliable performance within standard operating temperature ranges.

Single Diodes Feature Summary

Leadless plastic MELF-2 package design
Single-element silicon construction
Surface-mount configuration

Single Diodes Applications

General-purpose rectification circuits
DC power supply input stages
Reverse polarity protection

Single Diodes Procurement Notes

Verify the specific suffix 'TR' against the manufacturer's official datasheet to confirm tape-and-reel packaging specifications. Ensure the MELF-2 footprint matches the target PCB layout. Confirm RoHS compliance status if required by assembly standards. Cross-reference the part number with authorized distributors to validate current production status and availability.

Single Diodes Selection Notes

Select this component when a compact surface-mount rectifier is needed for low-to-medium current applications. The 200V rating suits lower voltage DC systems. Compare thermal dissipation requirements against the MELF-2 package capabilities. Consider leadless mounting benefits for automated assembly processes and reduced parasitic inductance compared to traditional axial leads.

Single Diodes Part Context

This device belongs to Central Semiconductor's line of silicon rectifiers. It serves as a surface-mount alternative to through-hole axial diodes. The MELF-2 form factor allows for high-density board layouts. It complements other series like CLL4752A for different voltage or functional needs.
