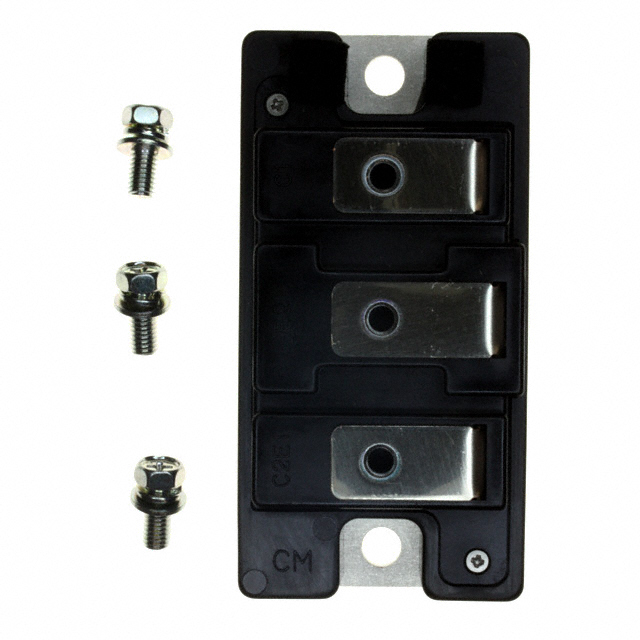

CM100DU-24NFH

$61.02

Description：IGBT MOD 1200V 100A 560W
Series：IGBTMOD™

SKU:5853b20a4d8a Category: IGBT Modules Brand: Powerex Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 1200V 100A 560W
Series：IGBTMOD™
Mfr：Powerex Inc.
Package：Bulk
IGBT Type：-
Configuration：Half Bridge
Vce(on) (Max) @ Vge, Ic：6.5V @ 15V, 100A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：100 A
Power - Max：560 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：16 nF @ 10 V

Download product information

CM100DU-24NFH

Overview

The CM100DU-24NFH is a 1200 V, 600 A N-channel IGBT module manufactured by Powerex Inc. It features a flange mount package with seven terminals and an isolated case connection. The device contains two elements configured in a series-connected, center-tapped arrangement with built-in diodes. It operates within a junction temperature range of -40°C to 150°C and has a maximum power dissipation of 650 W.

Feature Summary

High current capacity of 600 A for robust power handling
Integrated freewheeling diodes for efficient switching applications
Flange mount design ensuring secure chassis attachment

Applications

Industrial motor drives
Inverter systems
Power conversion equipment

Procurement Notes

Verify the exact part number against official manufacturer documentation before procurement. Confirm that the suffix 'NFH' corresponds to the specific variant requirements. Check for availability status as distribution channels may vary. Ensure compatibility with existing thermal management solutions.

Selection Notes

Select this module for applications requiring high current density and voltage ratings up to 1200 V. Consider the flange mount style for direct heatsink integration. Evaluate thermal resistance parameters against system cooling capabilities. Verify pinout compatibility with gate driver circuits.

Part Context

This component belongs to the CM series of standard IGBT modules produced by Powerex Inc. It is designed for medium to high-power industrial applications. The DU configuration indicates a specific internal topology suitable for bridge or chopper circuits.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult Powerex Inc. technical support for qualified alternatives or cross-reference options.
