Product Detailed Parameters
- Description：IGBT MOD 1200V 100A 625W
- Series：-
- Mfr：Powerex Inc.
- Package：Tray
- IGBT Type：-
- Configuration：Three Level Inverter
- Vce(on) (Max) @ Vge, Ic：2.25V @ 15V, 100A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：100 A
- Power - Max：625 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：10 nF @ 10 V
Download product information
Overview

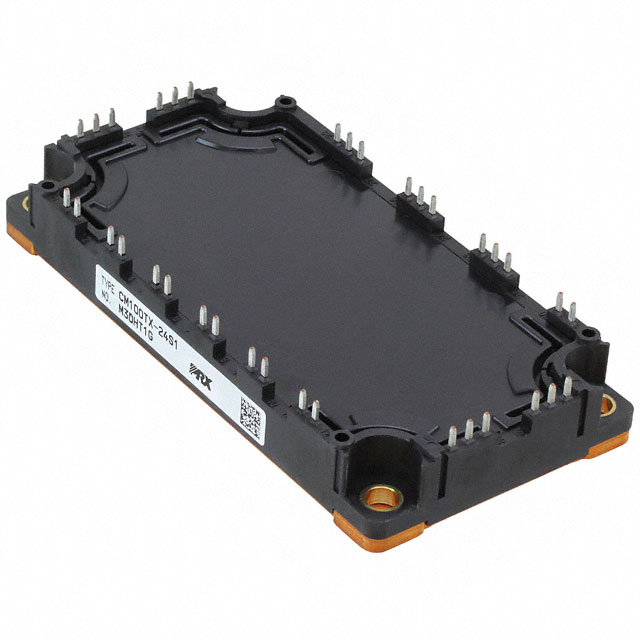

The CM100TX-24S1 is a three-level inverter IGBT module manufactured by Powerex. It features a 1200 V collector-emitter breakdown voltage and a continuous collector current of 150 A. The device has a maximum power dissipation of 935 W at an operating temperature of 150 °C. Key electrical parameters include a collector-emitter saturation voltage of 1.8 V, a collector-emitter voltage of 2.25 V, and a collector cutoff current of 1 mA. The input bias capacitance is 15 nF. Physically, the module contains 35 pins and includes a built-in thermistor for thermal monitoring.
Feature Summary
- Three-level inverter circuit structure designed for advanced power conversion applications
- Integrated thermal protection via built-in thermistor interface
- High-voltage insulation with 1200 V blocking capability
Applications
- Three-level neutral-point-clamped (NPC) inverters
- Medium voltage motor drives
- Uninterruptible power supplies (UPS)
- Static var generators
Procurement Notes
Verify the specific ordering suffix to ensure compatibility with required pin configurations and thermal characteristics. Confirm that the component meets REACH and SHVC compliance standards as specified in the official datasheet. Cross-reference the manufacturer's part number directly with Powerex documentation to avoid substitution errors.
Selection Notes
Select this module for applications requiring high current density and low conduction losses in three-level topologies. Ensure the cooling system can handle the 935 W power dissipation limit. Verify that the gate drive circuitry matches the 15 nF input capacitance requirements for optimal switching performance.
Part Context
This component belongs to Powerex's IGBT module portfolio, specifically engineered for three-level inverter architectures. It represents a specialized solution within the broader range of discrete and modular semiconductor devices offered by the manufacturer for industrial power electronics.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Consult Powerex engineering for direct replacements or updated series equivalents.
