Product Detailed Parameters
- Description：IGBT MOD 1200V 150A 960W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.6V @ 15V, 150A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：960 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：23 nF @ 10 V
Download product information
Overview

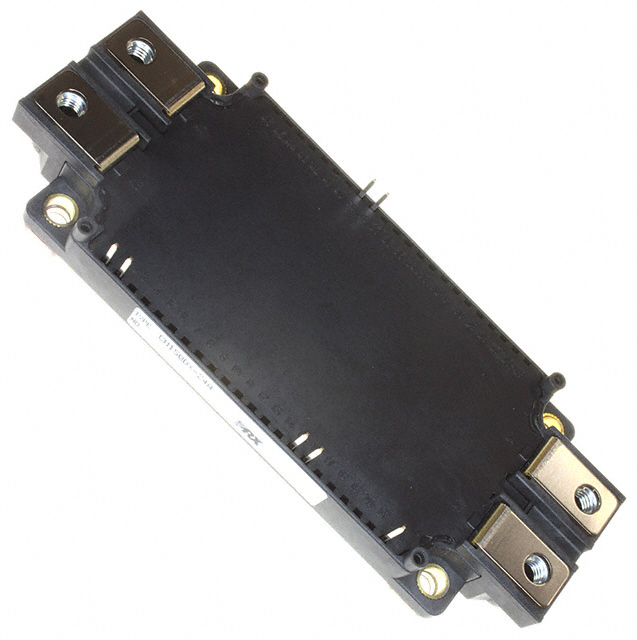

The CM150DX-24A is a dual IGBT module from the NX-Series manufactured by Powerex. It features a 1200 V collector-emitter breakdown voltage and a continuous collector current of 150 A. The device utilizes trench gate technology for high-power switching applications. Key electrical parameters include a maximum power dissipation of 935 W, an input capacitance of 15 nF at 10 V, and a collector-emitter saturation voltage typically around 1.8 V to 2.25 V depending on specific test conditions. The module operates within a junction temperature range of -40°C to 150°C.
Feature Summary
- Dual IGBT configuration optimized for high-power switching
- Trench gate bipolar transistor technology for improved performance
- Integrated NTC thermistor for thermal monitoring
Applications
- High power industrial motor drives
- Uninterruptible power supplies (UPS)
- Induction heating systems
Procurement Notes
Verify component authenticity through authorized Powerex distributors or direct manufacturer channels. Confirm lot traceability and compliance with REACH and SHVC standards. Check for obsolescence status as older series may be discontinued. Ensure proper handling procedures for sensitive semiconductor devices during storage and installation.
Selection Notes
Select this module for applications requiring 1200 V blocking capability and 150 A continuous current in a dual configuration. Consider the chassis mount package type and thermal management requirements for the 935 W power dissipation rating. Verify compatibility with existing gate drive circuits and cooling infrastructure before integration into the design.
Part Context
The CM150DX-24A belongs to the NX-Series family of IGBT modules produced by Powerex Inc. This series is designed for robust performance in demanding power electronics environments. Similar models in the lineup include variations with different voltage ratings or current capacities, such as the CM150DY-24A or CM150DU-24F, which share similar form factors but differ in internal chip specifications.
Replacement Considerations
Potential substitutes include the CM150DY-24A and CM150DU-24F from Powerex. Cross-reference pinouts and thermal characteristics carefully. Mitsubishi Electric also produces compatible modules like the CM150DX-24S, though verification of exact electrical parameters is required.
