CM150TX-24S

Overview

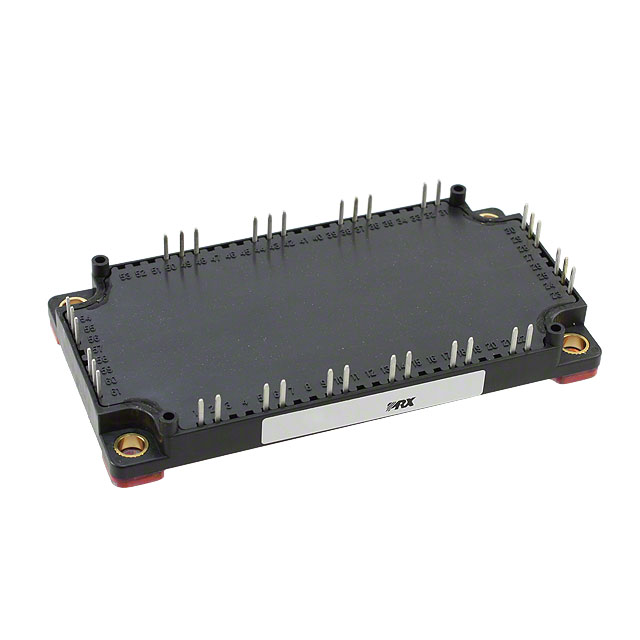

The CM150TX-24S is a six IGBT NX-Series module manufactured by Powerex Inc., designed for high-power switching applications. It features a three-phase inverter configuration with a maximum collector-emitter breakdown voltage of 1200V and a continuous collector current rating of 150A. The device has a maximum power dissipation of 1150W and an on-state collector-emitter voltage of 2.15V at 150A. It includes a standard NTC thermistor for thermal monitoring, operates within a junction temperature range of -40°C to 150°C, and utilizes chassis mount installation.

Feature Summary

• Six IGBT configuration suitable for three-phase inverter topologies
• Integrated NTC thermistor for precise thermal management
• NX-Series design optimized for high-power switching efficiency

Applications

• Three-phase motor drives
• Industrial inverters
• High-power switching systems

Procurement Notes

Verify component authenticity through authorized Powerex channels or certified distributors. Confirm the specific manufacturing date code and lot traceability against official documentation. Ensure storage conditions comply with semiconductor handling standards to prevent moisture damage prior to soldering. Check for any obsolescence notices or lifecycle status updates from the manufacturer before finalizing procurement plans.

Selection Notes

Select this module when a six-pack IGBT configuration is required for 1200V applications with 150A current capacity. Consider the integrated NTC sensor if active thermal protection is needed. Evaluate the chassis mount form factor against available cooling infrastructure. Compare power dissipation ratings with system thermal constraints to ensure adequate heat sinking solutions are implemented.

Part Context

This component belongs to the Powerex NX-Series IGBT modules, which are engineered for robust performance in demanding power electronics environments. The series offers various current ratings and configurations, including dual, chopper, and six-pack options, all sharing common mounting and electrical interface standards for design flexibility.

Replacement Considerations

Direct replacements may include other CM150TX variants or equivalent six-pack IGBT modules from Mitsubishi Electric, as Powerex manufactures these under license. Verify pinout compatibility and thermal resistance values when substituting.
