Product Detailed Parameters
- Description：IGBT MOD 1200V 150A 935W
- Series：-
- Mfr：Powerex Inc.
- Package：Tray
- IGBT Type：-
- Configuration：Three Level Inverter
- Vce(on) (Max) @ Vge, Ic：2.25V @ 15V, 150A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：935 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：15 nF @ 10 V
Download product information
Overview

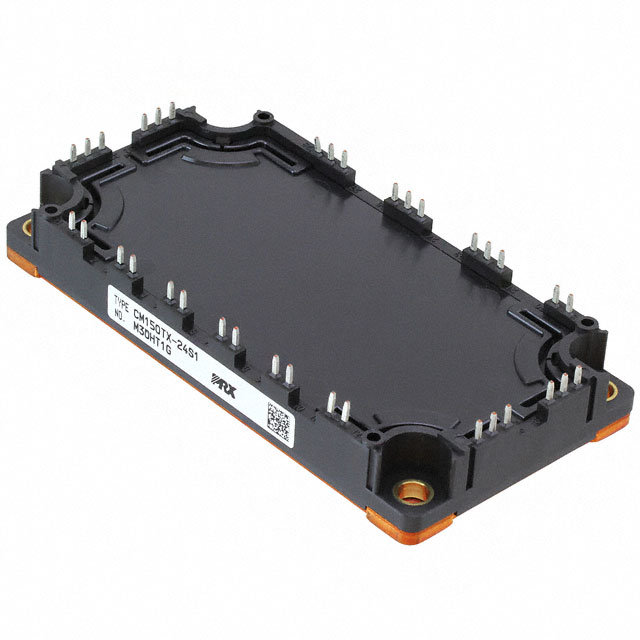

The CM150TX-24S1 is a three-level inverter IGBT module manufactured by Powerex Inc. It features a 1200 V collector-emitter breakdown voltage and a continuous collector current of 150 A. The device has a maximum power dissipation of 935 W and an input bias capacitance of 15 nF. Key electrical parameters include a collector-emitter saturation voltage of 1.8 V and a collector-emitter voltage of 2.25 V. The module includes an integrated NTC thermistor for thermal monitoring, operates at a junction temperature up to 150 °C, and utilizes a 35-pin module package.
Feature Summary
- Three-level inverter topology for advanced power conversion
- Integrated NTC thermistor for real-time thermal monitoring
- Chassis mount design with isolated case connection
Applications
- Industrial motor drives
- Uninterruptible power supplies (UPS)
- High-efficiency AC/DC converters
Procurement Notes
Verify the specific manufacturer datasheet for the CM150TX-24S1 to confirm current availability status, as some related models may be discontinued. Ensure that the ordering suffix corresponds exactly to the required pinout and thermal characteristics. Cross-reference the part number with official Powerex documentation to validate compliance with REACH and SHVC standards before finalizing procurement orders.
Selection Notes
Select this component when a three-level inverter configuration is required for high-efficiency applications. The 150 A rating and 1200 V blocking capability suit medium-power industrial systems. Verify that the chassis mounting style and 35-pin interface align with the system's mechanical constraints and gate drive requirements. Confirm thermal management solutions can handle the 935 W power dissipation at the specified operating temperatures.
Part Context
This module belongs to the IGBTmod™ series from Powerex Inc., designed for robust power switching applications. It represents a specialized solution within the company's portfolio for three-level topologies, distinct from standard two-level or single-phase modules. The integration of thermal sensing directly into the module enhances system reliability and simplifies thermal protection circuitry design.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided data. Verify compatibility with existing gate drivers and cooling structures if considering alternative three-level IGBT modules from other manufacturers.
