Product Detailed Parameters

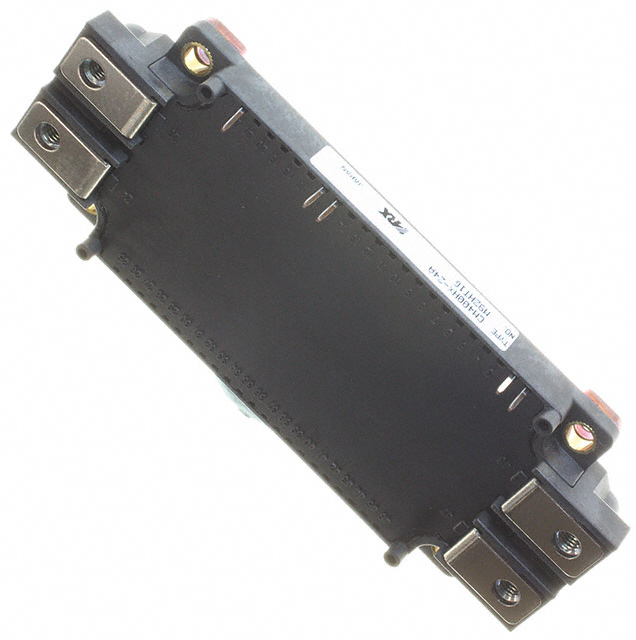

- Description：IGBT MOD 1200V 400A 2450W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：2.6V @ 15V, 400A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：400 A
- Power - Max：2450 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：66 nF @ 10 V
Download product information
Overview
The CM400HX-24A is a single IGBT module from the Powerex A-Series family, rated for 1200 V and 400 A. It utilizes carrier stored trench gate bipolar transistor technology to achieve low saturation voltage and reduced drive power requirements. The module integrates a discrete super-fast recovery free-wheel diode with a reverse recovery time of 135 ns. Designed for high-frequency switching applications between 20 kHz and 25 kHz, it features an electrically isolated baseplate to facilitate simplified system assembly and efficient thermal management.
Feature Summary
- Low drive power consumption
- Low collector-emitter saturation voltage
- Discrete super-fast recovery free-wheel diode
- High frequency operation capability
- Isolated baseplate for easy heat sinking
Applications
- AC motor control
- Motion and servo control
- Uninterruptible power supplies (UPS)
- Welding power supplies
- Laser power supplies
Procurement Notes
Verify the specific suffix designation against official manufacturer documentation to confirm exact electrical characteristics and pinout compatibility. Ensure that the component source is traced directly to authorized distributors or the original equipment manufacturer to prevent counterfeit parts. Cross-reference the datasheet revision history to validate technical parameters before integration into production designs.
Selection Notes
Select this module for high-power switching environments requiring robust thermal isolation and fast diode recovery. Evaluate the thermal resistance specifications relative to the intended heatsink design to maintain junction temperatures within safe operating limits. Confirm that the drive circuitry can support the required switching frequencies without excessive losses.
Part Context
This component belongs to the Powerex A-Series family of IGBT modules introduced in 2006. The series employs carrier stored trench gate bipolar transistor technology developed by Powerex in the United States. This lineage emphasizes efficiency and reliability in industrial power electronics applications.
Replacement Considerations
Cross-reference with Mitsubishi Electric Semiconductors part number CM400HA-24A for potential functional equivalents in high-power switching insulated type configurations.
