Product Detailed Parameters

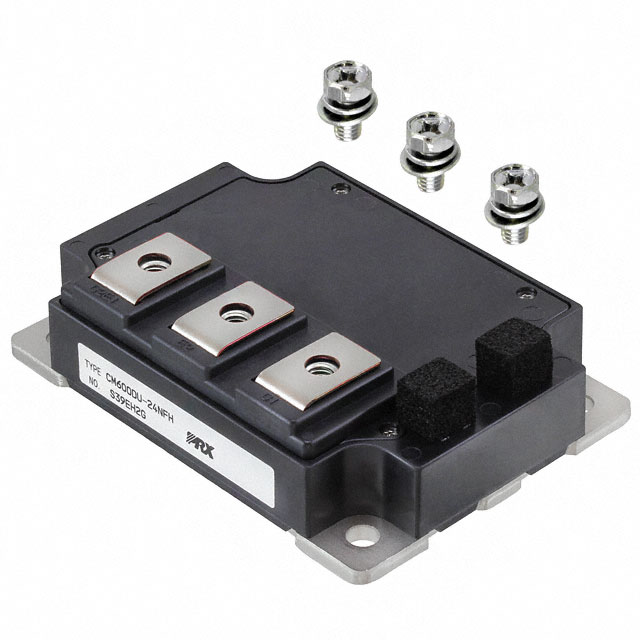

- Description：IGBT MOD 1200V 600A 1550W
- Series：IGBTMOD™
- Mfr：Powerex Inc.
- Package：Bulk
- IGBT Type：-
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：6.5V @ 15V, 600A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：600 A
- Power - Max：1550 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：95 nF @ 10 V
Download product information
Overview
The Powerex CM600DU-24NFH is a high-power insulated gate bipolar transistor (IGBT) module designed for industrial motor drives and power conversion systems. It integrates two IGBTs with anti-parallel diodes in a single package, providing a continuous collector current of 600A at 25°C case temperature. The device features a 2400V blocking voltage capability, ensuring robust performance under high-voltage stress conditions. Utilizing advanced chip technology, the module offers low conduction and switching losses to enhance overall system efficiency. The hermetically sealed construction ensures reliability in demanding thermal environments.
Feature Summary
- High current density design enabling compact system layouts
- Low on-state voltage drop for improved energy efficiency
- Robust short-circuit withstand capability for enhanced protection
- Optimized thermal resistance for effective heat dissipation
Applications
- Medium voltage variable frequency drives
- Induction heating power supplies
- Uninterruptible power supply systems
- Static VAR compensators
Procurement Notes
Verify the specific suffix codes against official datasheets to confirm terminal configuration and insulation requirements. Ensure compatibility with existing cooling solutions and gate drive circuits before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Confirm that the manufacturing date code meets project specifications for long-term reliability.
Selection Notes
Evaluate the thermal management requirements based on the specified junction-to-case thermal resistance values. Ensure the gate drive voltage levels align with the recommended operating range to prevent device damage. Consider the switching frequency limitations imposed by the reverse recovery characteristics of the integrated diodes. Verify mechanical mounting dimensions and torque specifications for secure installation.
Part Context
This module belongs to Powerex's DU series of high-power IGBT modules, which are engineered for demanding industrial applications. The series is known for combining high voltage ratings with substantial current handling capabilities. It serves as a critical component in converting electrical energy for motor control and grid stabilization tasks.
Replacement Considerations
Direct replacements must match the 600A current rating and 2400V voltage class. Verify pinout compatibility and thermal interface dimensions. Consult manufacturer cross-reference guides for approved equivalents that maintain identical electrical characteristics and mechanical form factors.
