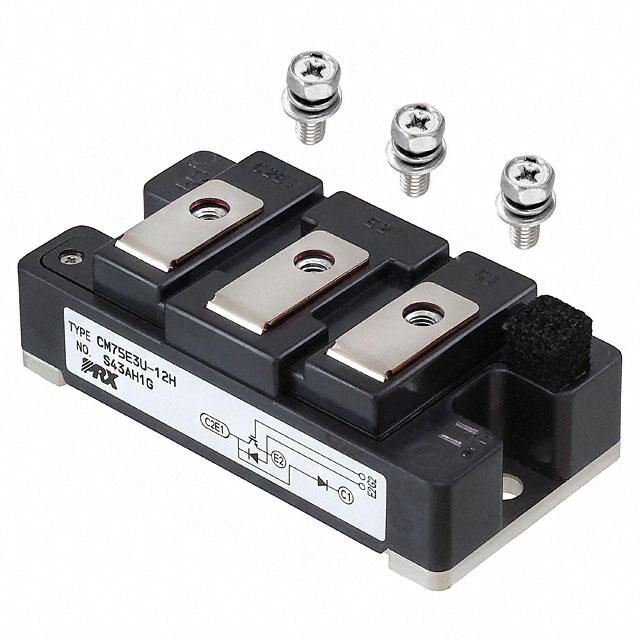

CM75E3U-12H

Description：IGBT MODULE 600V 75A 310W
Series：IGBTMOD™

SKU:3466dd411037 Category: IGBT Modules Brand: Powerex Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 600V 75A 310W
Series：IGBTMOD™
Mfr：Powerex Inc.
Package：Bulk
IGBT Type：-
Configuration：Single
Vce(on) (Max) @ Vge, Ic：3V @ 15V, 75A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：75 A
Power - Max：310 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：6.6 nF @ 10 V

Download product information

CM75E3U-12H

Overview

The CM75E3U-12H is a high-power switching insulated IGBT module manufactured by Powerex. It features a chopper circuit structure with N-channel IGBTs and anti-parallel diodes. The device is rated for a collector-emitter voltage of 1200 V and a continuous collector current of 75 A at 25°C. It utilizes a flange mount package design for efficient thermal management. The module integrates fast recovery diodes to support high-frequency switching applications in industrial power conversion systems.

Feature Summary

Insulated baseplate construction for electrical isolation
Integrated anti-parallel diodes for freewheeling capability
Flange mount configuration for direct heatsink attachment

Applications

Industrial motor drives
Uninterruptible power supplies (UPS)
High-frequency DC-DC converters

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm exact electrical characteristics and packaging variants. Ensure compatibility with existing thermal interface materials and mounting hardware specifications before integration into final assemblies.

Selection Notes

Select this component for applications requiring robust 1200 V blocking capability with moderate current handling. Evaluate thermal resistance parameters relative to the system's cooling infrastructure to ensure junction temperatures remain within safe operating limits during peak load conditions.

Part Context

This part belongs to the CM series of insulated IGBT modules designed for high-power density applications. It shares architectural similarities with other Chopper-type modules in the lineup, offering a balance between switching speed and conduction losses for medium-power industrial electronics.

Replacement Considerations

Cross-reference with Mitsubishi Electric CM75E3U-12H or similar 75A/1200V chopper modules. Verify pinout compatibility and thermal footprint dimensions before substitution.
