CMR2U-06 TR13 PBFREE

Single Diodes Overview

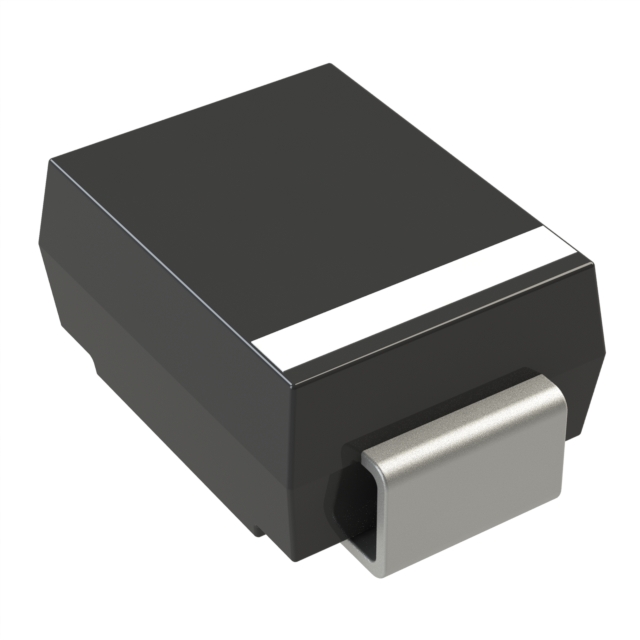

The Central Semiconductor CMR2U-06 TR13 PBFREE is a surface mount silicon ultra fast recovery rectifier rated for 2.0 Amp average forward current and 600 Volts peak repetitive reverse voltage. It utilizes an SMB (DO-214AA) package with glass passivated chip construction and C-bend leads for strain relief. The device features a maximum junction temperature of +150°C, a typical reverse recovery time of 100 ns, and a thermal resistance of 20°C/W.

Single Diodes Feature Summary

• Glass passivated chip construction for enhanced reliability
• C-bend lead configuration provides mechanical strain relief on the PCB
• Ultra fast recovery characteristics suitable for high-frequency switching

Single Diodes Applications

• Commercial power supply circuits
• Industrial motor drive systems
• Automotive electronics modules
• Computer equipment power regulation

Single Diodes Procurement Notes

Verify the specific suffix requirements when ordering to ensure compliance with environmental regulations. Confirm that the TR13 designation aligns with the required reel packaging quantity for automated assembly processes. Cross-reference the marking code CU206 against incoming inspection standards to validate component authenticity and traceability during quality control procedures.

Single Diodes Selection Notes

Select this component for designs requiring a 600V blocking capability within a compact SMB footprint. Ensure the circuit operates within the specified 2.0A average forward current limit at elevated temperatures. Consider the 100ns reverse recovery time when evaluating switching losses in high-frequency applications compared to standard recovery alternatives.

Single Diodes Part Context

This part belongs to the CMR2U series of 2.0 Amp ultra fast recovery rectifiers manufactured by Central Semiconductor Corp. The series spans voltage ratings from 100V to 1000V, offering standardized performance across multiple voltage classes while maintaining consistent physical dimensions and electrical characteristics for design flexibility.

Single Diodes Replacement Considerations

Direct substitutes include other SMB packaged ultra-fast rectifiers with matching 2.0A current and 600V voltage ratings. Verify pinout compatibility and reverse recovery time specifications before substitution to maintain circuit performance integrity.
