Product Detailed Parameters
- Description：CONN M.2 FMALE 73POS-NICKEL
- Series：CNU027S
- Mfr：Yamaichi Electronics
- Package：Tape & Reel (TR)
- Card Type：M.2 (NGFF) Mini Card
- Gender：Female
- Number of Positions/Bay/Row：-
- Number of Positions：73 (67 + 6 Power)
- Card Thickness：0.063" (1.60mm)
- Number of Rows：2
- Pitch：-
- Read Out：Dual
- Features：Board Guide
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Contact Material：Phosphor Bronze
- Contact Finish：Gold-Nickel
- Contact Finish Thickness：-
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-40°C ~ 85°C
Download product information
Overview

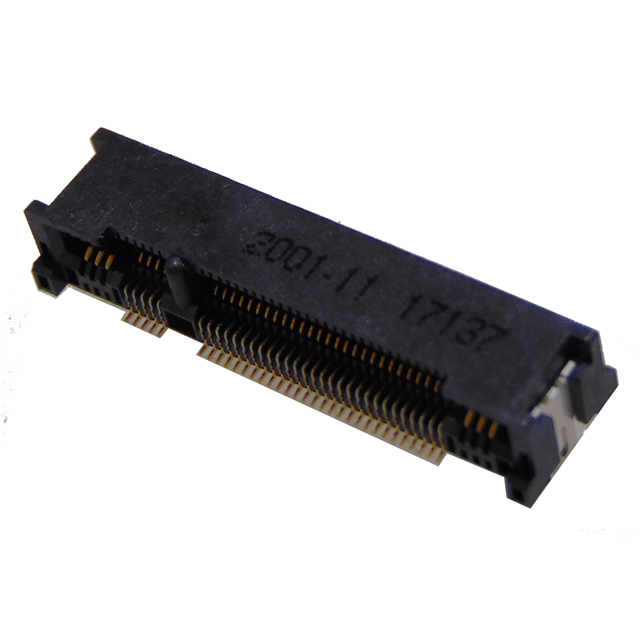

The CNU027S-067-2001-VE is an edgeboard connector from Yamaichi Electronics designed for M.2 applications. It features a right-angle SMT standard mount configuration with a total of 73 contacts, comprising 67 signal pins and 6 power pins. The component supports high-speed data transmission suitable for modern computing interfaces.
Feature Summary
- Engineered specifically for M.2 form factor integration in compact electronic systems
- Provides robust electrical connectivity through dedicated signal and power pin arrays
- Utilizes right-angle surface mount technology for efficient PCB layout optimization
Applications
- Infotainment systems in automotive environments
- Industrial-grade tablet devices requiring reliable expansion slots
- Military-grade tablets demanding durable hardware interfaces
Procurement Notes
Verify the specific suffix VE against official Yamaichi documentation to confirm exact mechanical and material specifications. Ensure compatibility with target M.2 module standards before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Confirm RoHS compliance status via current datasheets.
Selection Notes
Select this connector when designing systems requiring M.2 interface support with right-angle mounting constraints. Evaluate space limitations on the PCB to accommodate the standard mount profile. Consider thermal management requirements associated with high-density signal and power pin configurations during system design.
Part Context
This component belongs to Yamaichi's M.2 Series, targeting high-reliability sectors such as automotive and military applications. It serves as a critical interface between the host board and M.2 modules, ensuring stable data and power delivery in demanding operational environments.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Verify mechanical footprint and pinout compatibility if considering alternative edgeboard connectors from other manufacturers.
