COP8SAA7SLB8

Overview

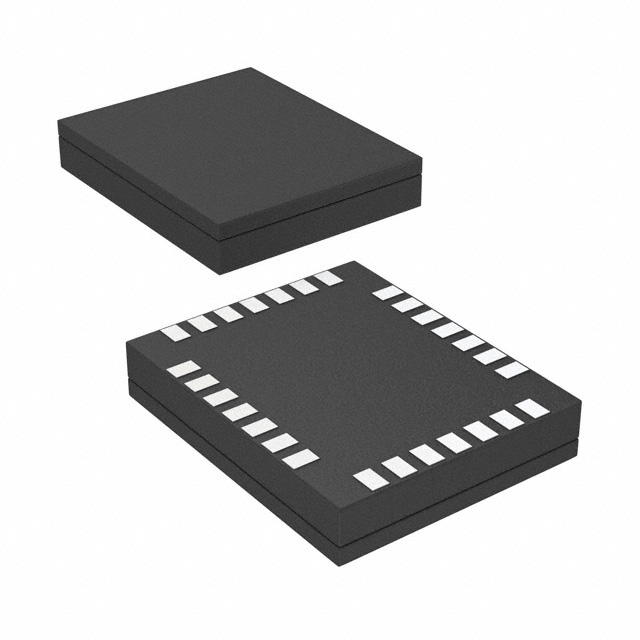

The COP8SAA7SLB8 is an 8-bit CMOS microcontroller from the COP8SA family, featuring 1KB (1K x 8) One-Time Programmable (OTP) program memory and 64 bytes of RAM. It operates within a voltage range of 2.7V to 5.5V and supports clock speeds up to 10MHz using an internal R/C oscillator or external crystal. The device utilizes a 28-pin CSP package measuring 5.5x4.5mm and includes 24 I/O pins with high current output capabilities.

Feature Summary

• Integrated low electromagnetic interference design utilizing gradual turn-on output drivers and internal smoothing filters.
• Versatile instruction set optimized for code efficiency with single-byte, single-cycle execution capabilities.
• Flexible software-configurable I/O ports supporting push-pull, tri-state, and weak pull-up modes.
• Built-in peripheral features including a 16-bit timer with PWM output and MICROWIRE/PLUS serial interface.

Applications

• Low-cost embedded control systems requiring minimal external components
• Battery-operated devices utilizing power-saving HALT and IDLE modes
• Applications necessitating reduced radiated emissions in compact form factors

Procurement Notes

Verify component authenticity through authorized distributors as this part may be obsolete. Confirm package integrity upon receipt, specifically checking for damage to the small outline CSP leads. Ensure storage conditions adhere to moisture sensitivity level requirements prior to soldering. Validate that the specific OTP variant matches the intended permanent programming constraints for the application.

Selection Notes

Select this component when a cost-effective 8-bit solution with integrated EMI reduction is required. It is suitable for designs needing a modified Harvard architecture for direct data table access from program memory. Consider this part for applications where pin count efficiency is critical, offering up to 24 usable I/Os in a compact footprint without sacrificing high-current drive capabilities.

Part Context

This device belongs to the COP8SA family, which serves as a superserset replacement for the older COP800 family in new designs. It maintains instruction set and pin compatibility while adding advanced features like low EMI technology and flexible packaging options. The family encompasses ROM, OTP, and EPROM variants across various memory sizes and temperature ranges.

Replacement Considerations

COP8SAA7SLB8CT

FAQ

What oscillator options are available for the COP8SAA7SLB8?

The device supports an internal R/C oscillator, an external oscillator, or a crystal/resonator option with an on-chip bias resistor.

How does the COP8SA family handle electromagnetic interference?

It incorporates patented EMI reduction technology including low EMI clock circuitry, gradual turn-on output drivers, and internal ICC smoothing filters.

What is the maximum sink current allowed per pin?

The allowable sink current is 15 mA for D outputs and L0 to L3 pins, and 3 mA for all other pins.
