CPPC7LZ-A7BR-36.864TS

Oscillators Overview

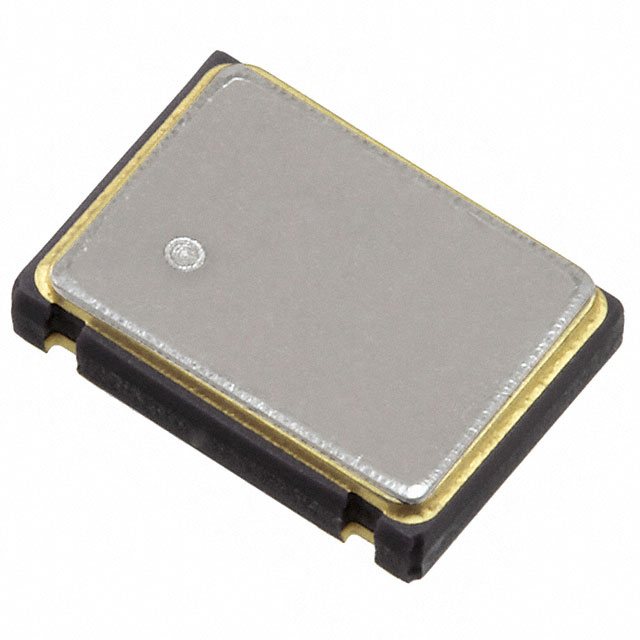

The CPPC7LZ-A7BR-36.864TS is a CMOS output clock oscillator manufactured by Cardinal Components Inc., designed for surface-mount applications. It operates at a nominal frequency of 36.864 MHz with a supply voltage range of 3 V to 3.6 V, typically utilizing a 3.3 V input. The device features a tri-state output and an enable/disable function, housed in a 4-pin ceramic SMD package measuring 7.0 mm x 5.0 mm x 1.7 mm. It supports rise and fall times of 4 ns and includes RoHS compliance.

Oscillators Feature Summary

• CMOS output interface with tri-state capability
• Field programmable blank oscillator architecture
• Integrated enable and disable control function
• Surface mount ceramic packaging

Oscillators Applications

• Digital video systems
• Ethernet and GbE networking
• Medical instrumentation
• Storage area networks
• Test and measurement equipment

Oscillators Procurement Notes

Verify the specific suffix configuration against the manufacturer's part numbering guide to ensure correct operating temperature range, stability, and package style. Confirm that the required field programming instrument compatibility aligns with your production workflow. Check datasheet specifications for load capacitance and pinout definitions before integration into PCB designs.

Oscillators Selection Notes

Select this component when a fixed 36.864 MHz CMOS signal is required in a compact surface-mount form factor. Consider the tri-state feature if bus sharing or power management is necessary. Ensure the 3.3 V supply voltage matches the target system logic levels and verify thermal requirements against the specified operating temperature range.

Oscillators Part Context

This oscillator belongs to the CPP series from Cardinal Components Inc., which specializes in field-programmable blank oscillators. These devices allow for on-the-fly frequency programming using dedicated instruments, offering flexibility in manufacturing. The CPPC7LZ variant specifically denotes a full-size CMOS oscillator in a 5x7 ceramic package.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
