CPPD-2-4

Overview

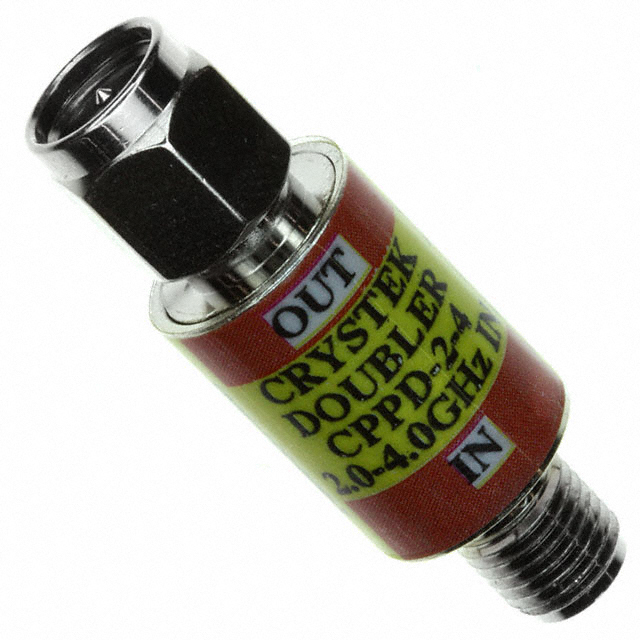

The CPPD-2-4 is a passive frequency doubler manufactured by Crystek Corporation, designed for RF applications within the 2.0 to 4.0 GHz input frequency range. It utilizes an SMA connector interface and operates with an input drive level between 10dBm and 20dBm. The component is housed in an inline module package, providing signal conditioning through frequency multiplication without active power sources.

Feature Summary

• Passive frequency doubling operation
• SMA connector interface
• Inline module packaging

Applications

• RF signal conditioning
• Frequency multiplier circuits
• Microwave system integration

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm electrical characteristics and mechanical dimensions. Ensure compatibility with SMA connectors and input drive levels between 10dBm and 20dBm. Cross-reference part numbers with official Crystek Corporation records to avoid counterfeit components.

Selection Notes

Select this component when a passive frequency doubling solution is required for the 2.0 to 4.0 GHz range. Consider the inline module form factor for space-constrained designs. Verify that the application environment supports the specified input drive levels and SMA interface requirements.

Part Context

The CPPD-2-4 belongs to Crystek Corporation's POCKET Passive Doubler series, which includes other models like CPPD-0.85-2. These components are categorized under RF Misc ICs and Modules, focusing on passive signal processing functions rather than active amplification or complex integrated circuits.

Replacement Considerations

Consult official Crystek Corporation documentation for verified substitute part numbers. No public substitutes are confirmed in available data.
