CPPLC7LZ-A7BR-27.0TS

$2.32

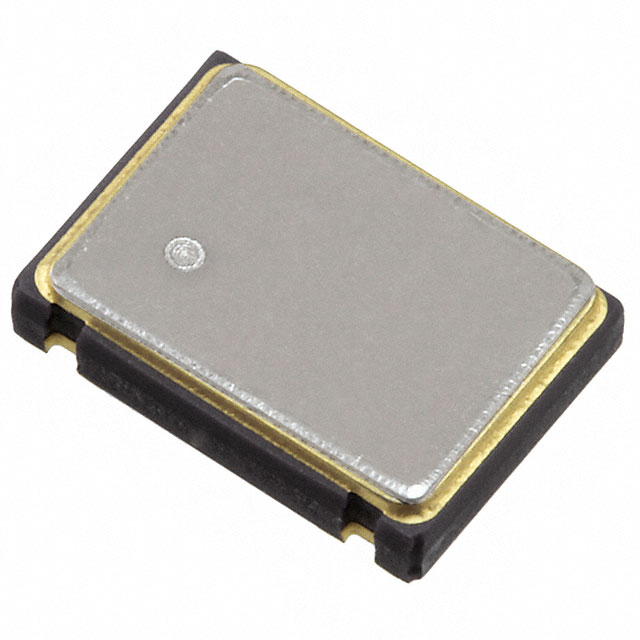

Description：XTAL OSC XO 27.0000MHZ CMOS SMD
Series：FIPO™ CPPL
Mfr：Cardinal Components Inc.
Package：Tape & Reel (TR)

SKU:801109c32f3c Category: Oscillators Brand: Cardinal Components Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CPPLC7LZ-A7BR-27.0TS is listed in the Oscillators range at ChipApex. The manufacturer field lists Cardinal Components Inc.. Its product description is XTAL OSC XO 27.0000MHZ CMOS SMD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for CPPLC7LZ-A7BR-27.0TS

Description：XTAL OSC XO 27.0000MHZ CMOS SMD
Series：FIPO™ CPPL
Mfr：Cardinal Components Inc.
Package：Tape & Reel (TR)
Base Resonator：Crystal
Type：XO (Standard)
Frequency：27 MHz
Function：Enable/Disable
Output：CMOS
Voltage - Supply：3.3V
Frequency Stability：±25ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：25mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)：0.075" (1.90mm)

Oscillators datasheet and documents for CPPLC7LZ-A7BR-27.0TS

CPPLC7LZ-A7BR-27.0TS

Oscillators Overview

The CPPLC7LZ-A7BR-27.0TS is a CMOS output clock oscillator manufactured by Cardinal Components Inc. It operates at a nominal frequency of 27 MHz with a supply voltage range of 3 V to 3.6 V, typically utilizing 3.3 V. The device features a tri-state output and an enable/disable function, housed in a surface-mount ceramic package measuring 7.0 mm x 5.0 mm x 1.7 mm. It supports a load capacitance of 30 pF and functions within a temperature range of -40 °C to 85 °C.

Oscillators Feature Summary

CMOS output interface with tri-state capability
Field programmable blank oscillator design
Surface mount ceramic packaging
Enable and disable control function

Oscillators Applications

Digital video systems
Ethernet and Gigabit Ethernet interfaces
Medical equipment timing
Storage area networking

Oscillators Procurement Notes

Verify the specific stability rating associated with the A7BR suffix against official datasheets, as generic listings may omit precise ppm values. Confirm that the tri-state logic levels match the target system requirements. Ensure the ceramic package dimensions align with the PCB footprint specifications for proper surface mount assembly.

Oscillators Selection Notes

Select this component when a field-programmable CMOS oscillator with enable functionality is required. The 27 MHz frequency suits standard digital video and communication applications. Consider the 3.3 V supply requirement and the -40 °C to 85 °C operating range for environmental compatibility.

Oscillators Part Context

This part belongs to the CPP series of field programmable crystal oscillators from Cardinal Components Inc. These devices are designed to be programmed using PG-3000 or PG-3100 instruments. The series offers flexibility through various package styles and voltage options, allowing customization for diverse electronic designs.
