CPPX4-A5BC-19.800NP

Oscillators Overview

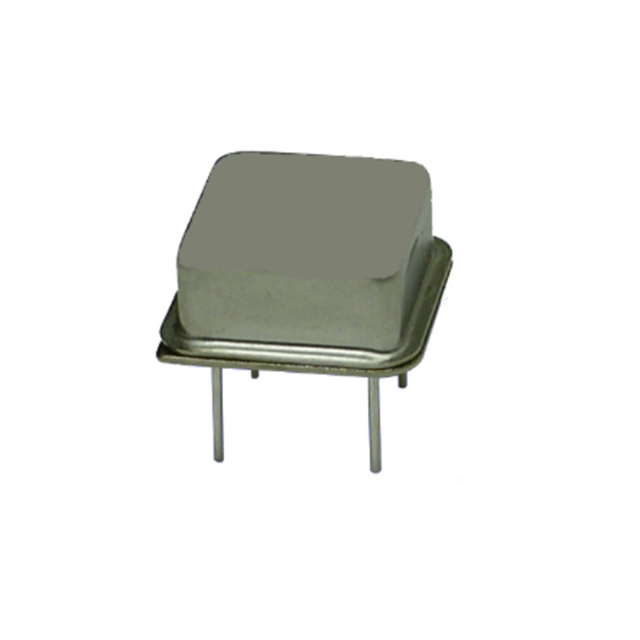

The CPPX4-A5BC-19.800NP is a CMOS output clock oscillator manufactured by Cardinal Components Inc., operating at a nominal frequency of 19.8 MHz. It features a 3.3V supply voltage and ±20 ppm frequency stability. The device supports Enable/Disable functionality and utilizes an 8-DIP half-size metal can package with four leads. It operates within a temperature range of -20°C to +70°C, with rise and fall times specified at 4 ns.

Oscillators Feature Summary

• Field-programmable blank oscillator capability allowing on-the-fly frequency customization using PG-3000 instruments.
• Integrated enable/disable control function for power management and signal gating.
• Sealed finished custom oscillator design providing robust protection against environmental factors.

Oscillators Applications

• Consumer products requiring conversion between PAL and NTSC electrical standards via frequency select lines.
• Modems requiring real-time switching between transmit and receive frequencies.
• Systems needing sealed custom oscillators for specific frequency requirements.

Oscillators Procurement Notes

Verify the exact part number suffix NP against official Cardinal Components documentation to confirm lead-free compliance and RoHS status. Ensure the programming instrument compatibility matches the field programmable blank nature of this component. Confirm the 3.3V supply requirement aligns with system design specifications before procurement.

Oscillators Selection Notes

Select this model when a half-size DIP metal can package is required for through-hole mounting. Choose this variant for applications needing precise 19.8 MHz timing with ±20 ppm stability. Consider the enable/disable feature if dynamic power control is necessary. Verify that the -20°C to +70°C operating range meets environmental constraints.

Oscillators Part Context

This component belongs to the Cardinal Components Dual Field Programmable Blank Oscillator series (CPPDX). These devices are designed to be programmed with specific frequencies using field instruments like the PG-3000. The series offers flexibility for custom frequency needs while maintaining standard package options and sealed construction for reliability in various electronic assemblies.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material. Direct replacement requires matching the 19.8 MHz frequency, 3.3V supply, 8-DIP half-size package, and CMOS output characteristics. Consult Cardinal Components for current equivalent offerings.
