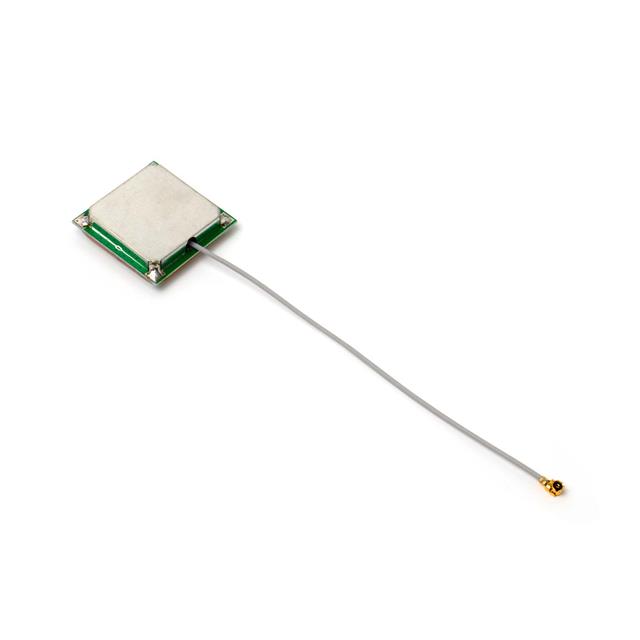

CRJKS0010-LNA-G65U is listed in the Antennas RF range at ChipApex. The manufacturer field lists Airgain. Its product description is GNSS ANTENNA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for CRJKS0010-LNA-G65U
- Description：GNSS ANTENNA
- Series：-
- Mfr：Airgain
- Package：Bag
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.583GHz
- Frequency Range：1.559GHz ~ 1.610GHz
- Antenna Type：Ceramic Patch
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：17dBi
- Features：LNA
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Height (Max)：0.264" (6.70mm)
- Applications：GPS
- Power - Max：-
Antennas RF datasheet and documents for CRJKS0010-LNA-G65U
Antennas RF Overview
The Airgain CRJKS0010-LNA-G65U is an internal GNSS L1 profile ceramic GPS embedded antenna designed for precise positioning applications. It operates within a frequency range of 1.559GHz to 1.610GHz, supporting a center frequency of 1.583GHz. The component features a single band configuration with a gain of 17dBi and includes an integrated Low Noise Amplifier (LNA). The physical dimensions are defined by a maximum height of 0.264 inches (6.70mm), classifying it as a ceramic patch antenna suitable for space-constrained embedded systems requiring reliable satellite signal reception.
Antennas RF Feature Summary
- Integrated Low Noise Amplifier for enhanced signal processing
- Ceramic patch construction optimized for embedded integration
- Dedicated L1 band support for global navigation satellite systems
Antennas RF Applications
- GPS module integration in portable devices
- Embedded navigation systems in IoT hardware
- GNSS receivers requiring compact form factors
Antennas RF Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required interface types and mounting configurations. Confirm that the LNA specifications meet the system's power budget and impedance requirements before finalizing procurement orders to avoid integration issues.
Antennas RF Selection Notes
Select this model when a low-profile ceramic solution is required for L1 band GNSS applications. Ensure the design accommodates the 6.70mm height constraint and integrates the necessary RF matching network for the built-in LNA. Validate performance against specific environmental conditions and interference levels present in the target deployment scenario.
Antennas RF Part Context
This component belongs to the CRJKS0010 series of embedded antennas manufactured by Airgain. The series focuses on providing high-performance GNSS solutions in compact ceramic packages. The specific variant includes an LNA to improve sensitivity for weak satellite signals in challenging environments.
Antennas RF Replacement Considerations
Consult official Airgain documentation for direct cross-references. Verify pinout compatibility and mechanical footprint equivalence if substituting with other ceramic patch antennas from different manufacturers or alternative models within the same product line.
