CS22-08IO1M

$3.98

Description：SCR 800V 25A TO220
Series：-

SKU:0801d7672265 Category: SCRs Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SCR 800V 25A TO220
Series：-
Mfr：IXYS
Package：Tube
Voltage - Off State：800 V
Voltage - Gate Trigger (Vgt) (Max)：1.3 V
Current - Gate Trigger (Igt) (Max)：30 mA
Current - Hold (Ih) (Max)：60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)：300A, 325A
SCR Type：Standard Recovery
Operating Temperature：-40°C ~ 150°C
Grade：-
Qualification：-
Mounting Type：Through Hole

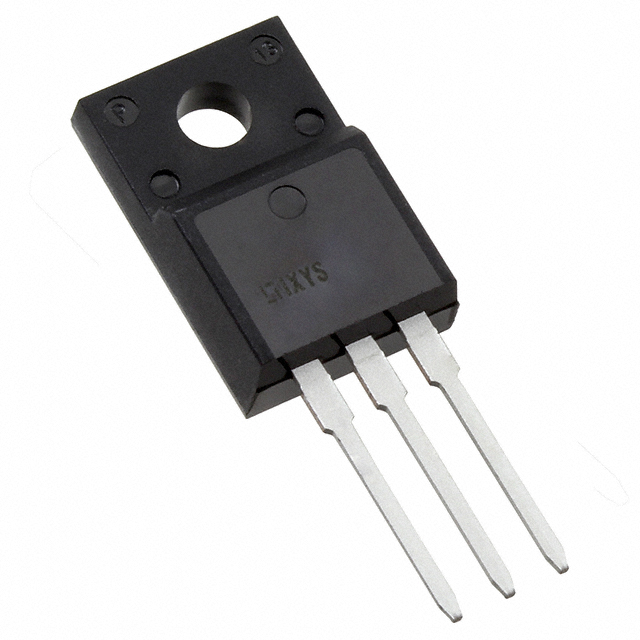

Package / Case：TO-220-3 Full Pack, Isolated Tab
Supplier Device Package：TO-220 Isolated Tab
Voltage - On State (Vtm) (Max)：1.3 V
Current - On State (It (AV)) (Max)：16 A
Current - On State (It (RMS)) (Max)：25 A
Current - Off State (Max)：10 µA

Download product information

CS22-08IO1M

Overview

The CS22-08IO1M is a high-efficiency thyristor manufactured by IXYS, designed for phase control applications up to 400Hz. It features an electrically isolated tab in an international standard package, ensuring safety and ease of mounting. The device utilizes a high-performance glass passivated chip for long-term stability of leakage current and blocking voltage. Plastic overmolding provides electrical isolation while meeting UL 94V-0 flammability standards. This component offers space and weight savings compared to traditional solutions, making it suitable for motor control, power converters, and AC power controllers.
