CTLSH5-100M364 TR13 PBFREE

$0.27

Description：5A 100V SMD RECTIFIER-SCHOTTKY (
Series：-
Mfr：Central Semiconductor Corp
Package：Tape & Reel (TR)

SKU:9985e4d60795 Category: Single Diodes Brand: Central Semiconductor Corp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

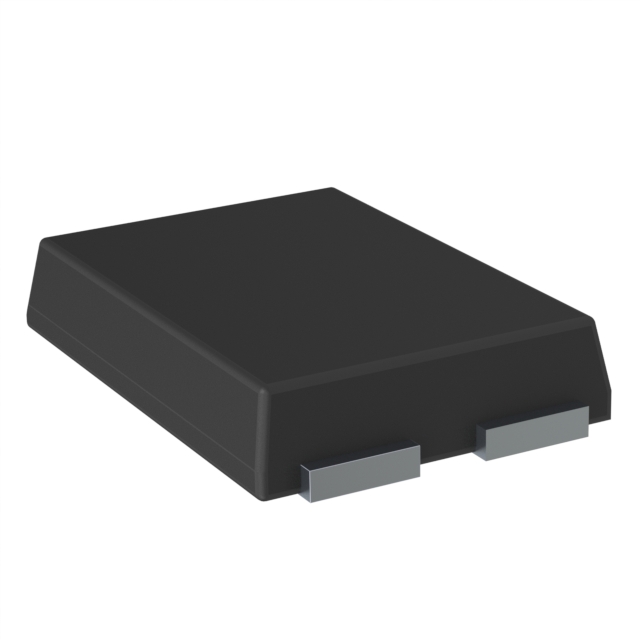

CTLSH5-100M364 TR13 PBFREE is listed in the Single Diodes range at ChipApex. The manufacturer field lists Central Semiconductor Corp. Its product description is 5A 100V SMD RECTIFIER-SCHOTTKY (. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for CTLSH5-100M364 TR13 PBFREE

Description：5A 100V SMD RECTIFIER-SCHOTTKY (
Series：-
Mfr：Central Semiconductor Corp
Package：Tape & Reel (TR)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：100 V
Current - Average Rectified (Io)：5A
Voltage - Forward (Vf) (Max) @ If：800 mV @ 5 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：15 µA @ 100 V
Capacitance @ Vr, F：-
Mounting Type：Surface Mount
Package / Case：3-SMD, Flat Leads
Supplier Device Package：TLM364
Operating Temperature - Junction：-55°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for CTLSH5-100M364 TR13 PBFREE

CTLSH5-100M364 TR13 PBFREE

Single Diodes Overview

The CTLSH5-100M364 TR13 PBFREE is a Schottky rectifier manufactured by Central Semiconductor Corp. It features a maximum repetitive reverse voltage of 100V and an average forward current rating of 5.0A. The device utilizes silicon technology in a surface-mount SMC (DO-214AB) package. Key electrical characteristics include a peak forward surge current of 125A and a low forward voltage drop typical of Schottky designs. It operates within a junction temperature range of -65°C to 150°C and complies with RoHS3 standards.

Single Diodes Feature Summary

Utilizes Schottky barrier technology for high efficiency and fast switching performance
Designed for surface-mount assembly using the robust SMC (DO-214AB) package
Capable of handling high peak forward surge currents up to 125A

Single Diodes Applications

General purpose rectification in power supply circuits
Protection against polarity reversal in DC systems
Free-wheeling diodes in inductive load switching applications

Single Diodes Procurement Notes

Verify the complete part number including the trailing suffixes to ensure correct packaging configuration. Confirm that the specific variant matches the required voltage and current ratings for the target circuit design. Check for any recent product change notifications or end-of-life status updates from the manufacturer before finalizing procurement plans.

Single Diodes Selection Notes

Select this component when a 100V blocking capability and 5.0A continuous current rating are required in a compact surface-mount form factor. The SMC package provides adequate thermal dissipation for moderate power applications. Ensure the application does not exceed the specified peak surge current limits during transient events.

Single Diodes Part Context

This part belongs to the CMSH5 series of Schottky rectifiers from Central Semiconductor. The series offers various voltage ratings optimized for efficient power conversion. The 'TR13' designation indicates tape and reel packaging suitable for automated surface-mount placement processes.
