CUS10I30A(TE85L,QM

Single Diodes Overview

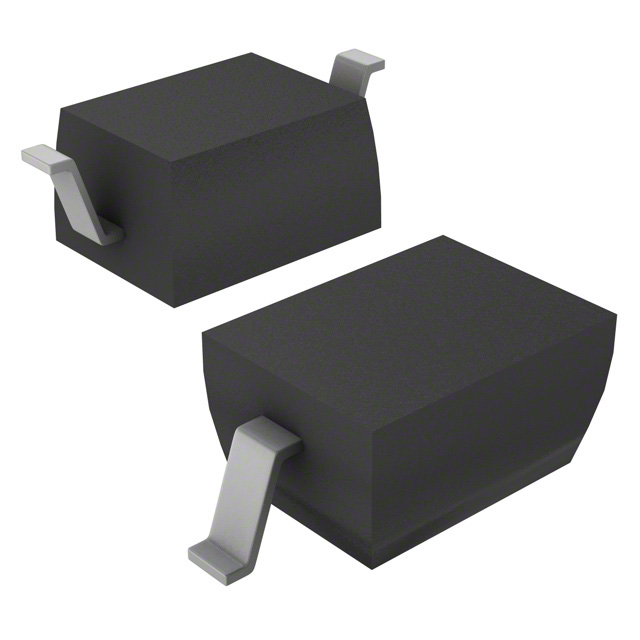

CUS10I30A(TE85L,QM is a surface-mount Schottky barrier diode manufactured by Toshiba Semiconductor and Storage. It features a maximum repetitive reverse voltage of 30V and a forward current rating of 1A. The device utilizes US-FLAT packaging with dimensions of 1.25x2.5mm. Key electrical characteristics include a typical forward voltage of 0.45V at 1A and a maximum reverse leakage current of 60µA at 30V. It operates within a junction temperature range up to 150°C and supports storage temperatures from -55°C to 150°C.

Single Diodes Feature Summary

• Schottky barrier technology for low forward voltage drop
• Compact US-FLAT surface mount package design
• High thermal stability with elevated junction temperature capability

Single Diodes Applications

• DC-DC converter output rectification
• Low voltage power supply freewheeling diodes
• Reverse polarity protection circuits

Single Diodes Procurement Notes

Verify the specific suffix TE85L,QM against official Toshiba documentation to confirm tape and reel specifications. Ensure compatibility with automated pick-and-place equipment due to the small US-FLAT footprint. Confirm RoHS compliance status through the manufacturer's latest environmental declaration before finalizing procurement orders.

Single Diodes Selection Notes

Select this component when a compact Schottky diode is required for 30V applications with 1A current handling. Compare forward voltage specifications against system efficiency requirements. Evaluate the US-FLAT package dimensions against available PCB real estate constraints. Consider thermal management needs given the small surface area of the package.

Single Diodes Part Context

This part belongs to Toshiba's discrete Schottky diode portfolio designed for high-efficiency power management. It complements other small-signal and rectifier devices in the CRS and CUHS series. The product targets modern electronics requiring miniaturization and improved power conversion efficiency in portable and industrial applications.

Single Diodes Replacement Considerations

BFR380FH6327XTSA1 and MRF454 are listed as similar alternatives by distributors, though their technical suitability requires verification against specific circuit requirements.
