CWR-170-26-0203

Edgeboard Connectors Overview

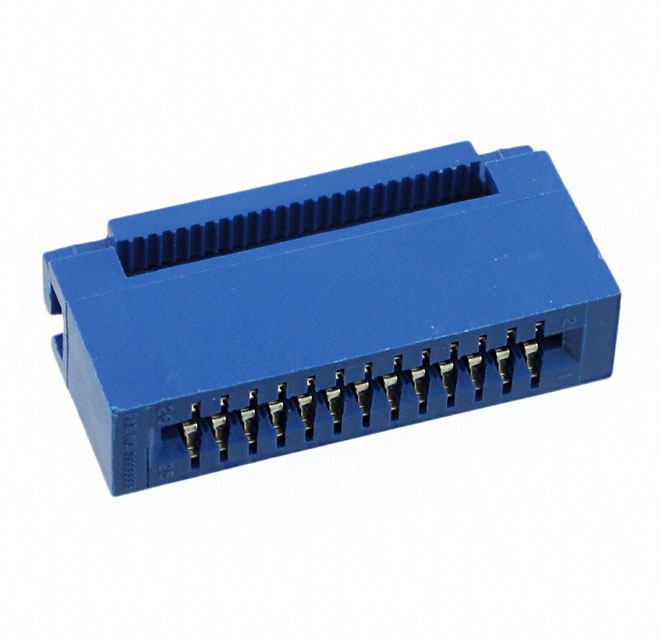

The CWR-170-26-0203 is a dual-edge card edge connector manufactured by CW Industries. It features 26 positions arranged in two rows, with a pitch of 0.100 inches (2.54 mm). The connector utilizes surface mount technology for vertical installation and employs tin plating on the contacts. Designed for board-to-board connections, it operates within a temperature range of -55°C to +125°C. The housing is constructed from thermoplastic material and is blue in color.

Edgeboard Connectors Feature Summary

• Dual-edge design accommodates double-sided circuit boards
• Vertical surface mount configuration ensures stable PCB integration
• Tin-plated contacts provide reliable electrical conductivity

Edgeboard Connectors Applications

• Double-sided printed circuit board interconnections
• High-density electronic module mounting
• Industrial control system backplanes

Edgeboard Connectors Procurement Notes

Verify the specific contact plating finish and insulation material grade against current manufacturer specifications before integration. Confirm that the vertical surface mount footprint aligns precisely with the target PCB layout. Ensure thermal management strategies account for the specified operating temperature range during assembly and operation.

Edgeboard Connectors Selection Notes

Select this component when a vertical, dual-edge interface is required for double-sided boards. The 2.54 mm pitch suits standard density applications. Verify compatibility with the target board thickness and ensure the surface mount termination method matches the manufacturing process capabilities.

Edgeboard Connectors Part Context

This part belongs to the CWR series of card edge connectors from CW Industries. The series offers various position counts and mounting styles. This specific model focuses on high-pin-count connectivity with robust surface mount reliability for demanding environments.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts with identical 26-position dual-edge specifications and vertical SMT mounting. Verify matching pitch dimensions and contact plating requirements to ensure functional interchangeability without redesigning the host PCB.
