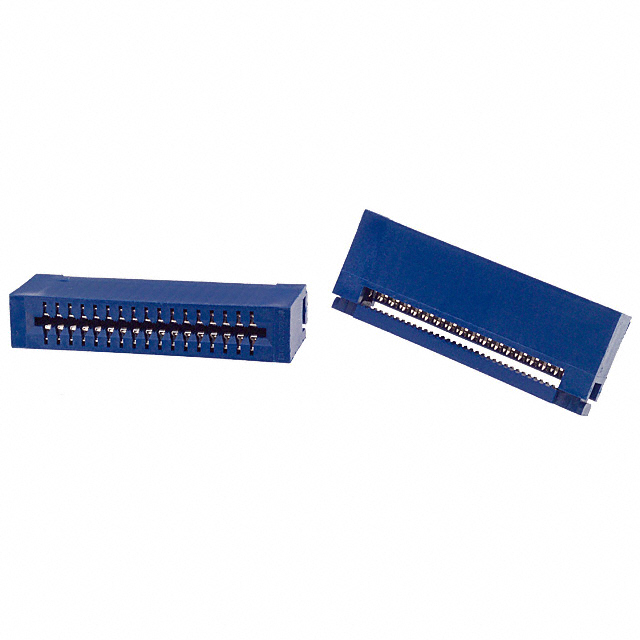

CWR-170-34-0003 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists CW Industries. Its product description is CONN EDGE DUAL FMALE 34POS .100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for CWR-170-34-0003
- Description：CONN EDGE DUAL FMALE 34POS .100
- Series：170
- Mfr：CW Industries
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：17
- Number of Positions：34
- Card Thickness：0.032" ~ 0.070" (0.81mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Free Hanging (In-Line)
- Termination：IDC
- Contact Material：Phosphor Bronze
- Contact Finish：Tin-Lead
- Contact Finish Thickness：100.0µin (2.54µm)
- Contact Type：Cantilever
- Color：Blue
- Flange Feature：-
- Operating Temperature：-55°C ~ 125°C
Edgeboard Connectors datasheet and documents for CWR-170-34-0003
Edgeboard Connectors Overview
The CWR-170-34-0003 is a commercial-grade card edge connector manufactured by CW Industries. It features a dual-row configuration with 34 positions and a 2.54 mm (0.1 inch) pitch. The connector utilizes an IDC termination method for ribbon cable applications. It is designed for free-hanging installation with a straight mounting style. The unit operates within a temperature range of -55°C to +125°C.
Edgeboard Connectors Feature Summary
- Dual-row card edge design for high-density interconnects
- IDC termination compatible with ribbon cables
- Free-hanging mechanical mounting style
Edgeboard Connectors Applications
- Ribbon cable assembly connections
- Commercial electronic equipment interconnects
- General-purpose circuit board interfaces
Edgeboard Connectors Procurement Notes
Verify the specific datasheet version for the CWR-170-34-0003, as manufacturer listings may reference similar part numbers like CWR-170-34-0000 or CWR-210-34-0203. Confirm RoHS compliance status and lead-free requirements against current regulatory standards before procurement. Ensure the ordering suffix matches the exact pin configuration and plating specifications required for the target application.
Edgeboard Connectors Selection Notes
Select this component when a dual-row IDC interface is required for ribbon cables. The 34-position count and 2.54 mm pitch define the physical constraints. Verify that the free-hanging form factor suits the mechanical layout. Compare against single-row alternatives if space is limited. Ensure the operating temperature range meets environmental demands.
Edgeboard Connectors Part Context
This part belongs to the CWR series of rectangular connectors from CW Industries. The series includes various configurations for card edge and header applications. The CWR-170-34-0003 specifically addresses dual-row IDC needs. Other variants in the family differ in position count, row configuration, or termination type.
Edgeboard Connectors Replacement Considerations
Cross-reference with CWR-170-34-0000 for potential functional equivalents. Verify pinout compatibility and mechanical dimensions before substitution. Check for updated manufacturing revisions.
