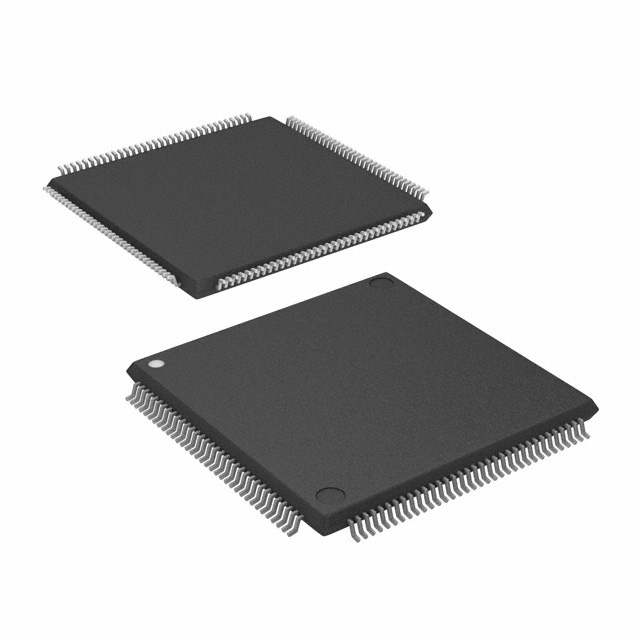

CY91F466HAPMC-GS-UJE2

Microcontrollers Overview

The CY91F466HAPMC-GS-UJE2 is a member of the CY91460H series, featuring a FR60 CPU core with a maximum frequency of 96 MHz. It includes 832 KByte of internal flash memory and 24 KByte of D-RAM. The device provides up to 108 general-purpose I/O ports and supports an external bus interface. Integrated peripherals include a 10-bit ADC with 32 channels, one C_CAN controller supporting up to 1 Mbps, two I2C interfaces, and multiple timer modules such as PPG and free-run timers.

Microcontrollers Feature Summary

• FR60 CPU core with five-stage pipeline architecture
• Integrated LIN-USART and C_CAN controllers
• Support for simultaneous program and data access via Harvard architecture
• Built-in multiplier with instruction-level support

Microcontrollers Applications

• Consumer devices requiring high-speed real-time processing
• On-board vehicle systems
• Embedded control applications

Microcontrollers Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to confirm package type, temperature range, and mass production status. Ensure compatibility with required voltage levels and clock configurations before procurement.

Microcontrollers Selection Notes

Select this component when a balance of high-performance processing and extensive peripheral integration is needed. Consider the 96 MHz operating speed and large memory capacity for complex algorithm execution. Evaluate pin availability for CAN and USART requirements.

Microcontrollers Part Context

This microcontroller belongs to the CY91460H series, designed for embedded control. It utilizes the FR60 CPU compatible with the FR family. The series targets applications demanding robust real-time performance and versatile connectivity options within automotive and consumer electronics sectors.

Microcontrollers Replacement Considerations

Check CY91F464HB for lower memory configurations within the same series. Verify functional equivalence regarding pinout and peripheral availability if substituting with other FR60-based models.
