D1G-T

Single Diodes Overview

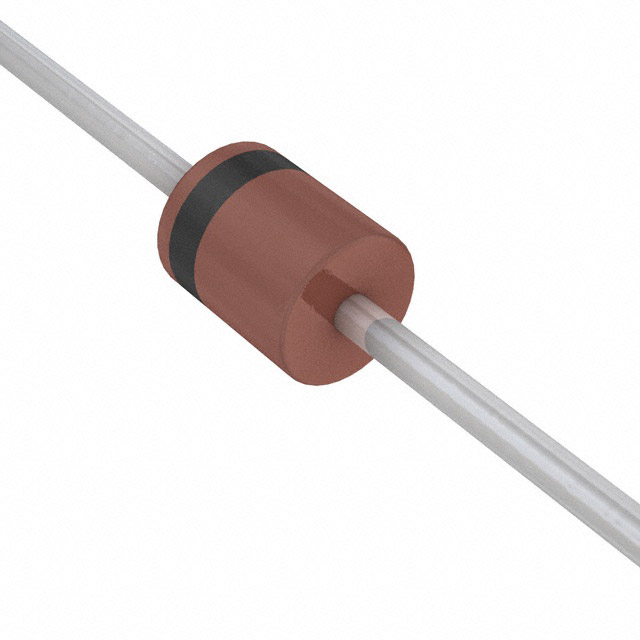

The D1G-T is a 1.0A glass passivated rectifier from Diodes Incorporated, rated for a maximum repetitive reverse voltage of 50V. It features a T-1 axial leaded package and supports an average rectified output current of 1.0A at 75°C ambient temperature. The device exhibits a forward voltage of 1.0V at 1.0A and a peak reverse current of 5.0µA at 25°C. It withstands non-repetitive peak forward surge currents up to 30A and operates within a junction temperature range of -65°C to +150°C.

Single Diodes Feature Summary

• Glass passivated die construction ensures stable electrical characteristics and long-term reliability under varying thermal conditions.
• High current capability combined with low forward voltage drop optimizes power efficiency in rectification applications.
• Robust surge overload rating allows the component to handle high transient currents without failure.

Single Diodes Applications

• General-purpose rectification in AC/DC power supply circuits
• Protection against reverse polarity in DC input lines
• Freewheeling diode implementation in inductive load switching

Single Diodes Procurement Notes

Verify that the specific procurement order explicitly includes the suffix '-T' to ensure the tape and reel packaging variant is supplied. Confirm compliance with RoHS directives and check for any applicable exemptions listed in the manufacturer's documentation before finalizing the purchase agreement.

Single Diodes Selection Notes

Select this component when a 50V blocking voltage is required alongside a continuous 1.0A current capacity. Ensure the application environment maintains temperatures below 75°C for full current ratings or apply derating curves for higher ambient conditions. Verify that the axial leaded form factor fits the target PCB layout constraints.

Single Diodes Part Context

This part belongs to the D1G-D7G series of 1.0A glass passivated rectifiers manufactured by Diodes Incorporated. The series provides standardized voltage ratings ranging from 50V to 1000V within identical mechanical packages. The D1G-T specifically addresses low-voltage, high-current rectification needs using the T-1 case style.

Single Diodes Replacement Considerations

Direct substitutes include other 1.0A, 50V axial rectifiers such as the 1N5400 series equivalents. Verify that replacement parts match the T-1 package dimensions and meet the same 30A surge current rating to maintain circuit integrity.
