DD1600S33HE4BPSA1

$1,319.37

Description：IHV IHM T
Series：-
Mfr：Infineon Technologies
Package：Tray

SKU:4055ca81ca94 Category: Single FETs, MOSFETs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IHV IHM T
Series：-
Mfr：Infineon Technologies
Package：Tray
FET Type：-
Technology：-
Drain to Source Voltage (Vdss)：-
Current - Continuous Drain (Id) @ 25°C：-
Drive Voltage (Max Rds On, Min Rds On)：-
Rds On (Max) @ Id, Vgs：-
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：-
Vgs (Max)：-
Input Capacitance (Ciss) (Max) @ Vds：-
FET Feature：-
Power Dissipation (Max)：-
Operating Temperature：-
Grade：-
Qualification：-
Mounting Type：-
Supplier Device Package：-
Package / Case：-

Download product information

DD1600S33HE4BPSA1

Overview

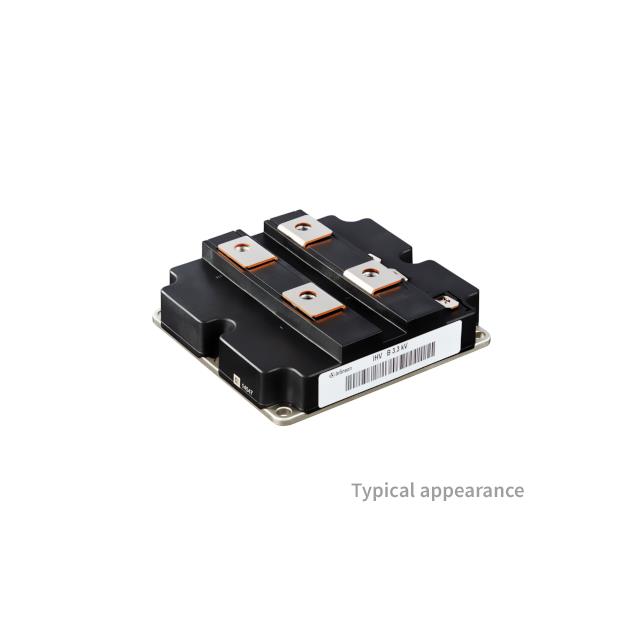

The DD1600S33HE4BPSA1 is an IHM-B module featuring Emitter Controlled 4 diodes. It has a repetitive peak reverse voltage of 3300 V and a continuous DC forward current of 1600 A. The maximum RMS module DC-terminal current is 1200 A at TC = 80 °C. The package includes an AlSiC base plate with an isolated design and a CTI greater than 600. Insulation test voltage is 6.0 kV RMS, and partial discharge extinction voltage is 2.6 kV RMS.

Feature Summary

High DC stability for reliable operation
Low switching losses to improve efficiency
AlSiC base plate increases thermal cycling capability
Isolated base plate with high comparative tracking index

Applications

Medium-voltage converters
Motor drives
Traction drives
UPS systems
Wind turbines

Procurement Notes

Verify the specific suffix BPSA1 against official Infineon documentation to confirm exact ordering details and availability status. Ensure compliance with IEC 60747, 60749, and 60068 standards for industrial application validation before procurement.

Selection Notes

Select this component for high-power applications requiring robust thermal management and high voltage isolation. The AlSiC base plate supports demanding thermal cycling conditions. Verify mounting torque specifications (M6: 4.25-5.75 Nm) during integration to ensure mechanical integrity.

Part Context

This part belongs to the Infineon IHM-B module family, designed for high-performance power electronics. It utilizes emitter-controlled technology to optimize switching characteristics. The module is qualified for industrial environments according to relevant international testing standards.

Replacement Considerations

Consult official Infineon cross-reference lists for verified substitutes. Do not assume compatibility based on similar ratings alone; verify pinout, thermal resistance, and insulation coordination.
