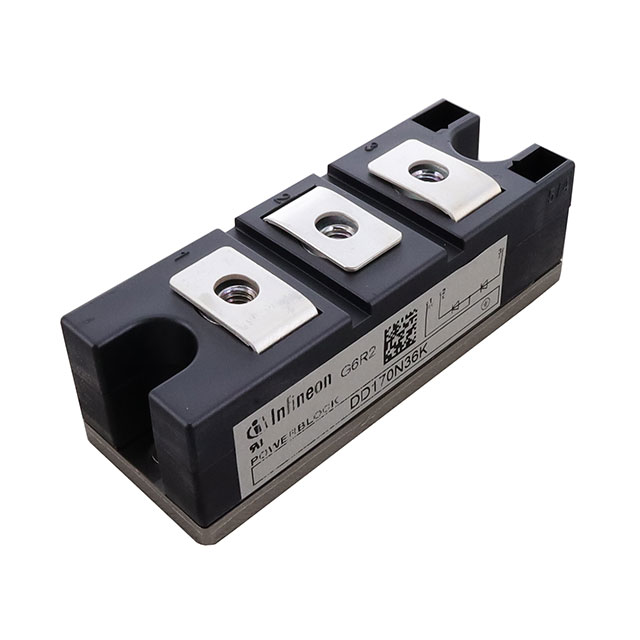

DD170N36KHPSA1

$162.27

Description：DIODE MOD GP 3600V 170A BGPB34AT
Series：-

SKU:3d340e3ee22b Category: Diode Arrays Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DD170N36KHPSA1 is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is DIODE MOD GP 3600V 170A BGPB34AT. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for DD170N36KHPSA1

Description：DIODE MOD GP 3600V 170A BGPB34AT
Series：-
Mfr：Infineon Technologies
Package：Tray
Diode Configuration：1 Pair Series Connection
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：3600 V
Current - Average Rectified (Io) (per Diode)：170A
Voltage - Forward (Vf) (Max) @ If：1.82 V @ 600 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：25 mA @ 3600 V
Operating Temperature - Junction：150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：BG-PB34AT-1
Grade：-
Qualification：-

Diode Arrays datasheet and documents for DD170N36KHPSA1

DD170N36KHPSA1

Diode Arrays Overview

The DD170N36KHPSA1 is a single rectifier diode module from Infineon's Power Block series, utilizing 34 mm pressure contact technology. It features an Advanced Medium Power Technology (AMPT) silicon pellet and an electrically insulated base plate. Key electrical ratings include a repetitive peak reverse voltage of 3600 V and a maximum average on-state current of 170 A at a case temperature of 100 °C. The surge current capacity is 5300 A for a 10 ms pulse duration. Thermal performance is characterized by a junction-to-case thermal resistance of 0.193 K/W per arm under sinusoidal conduction.

Diode Arrays Feature Summary

Pressure contact technology ensures high mechanical reliability and low thermal resistance.
Electrically insulated base plate provides basic insulation compliant with Class 1 safety standards.
Advanced Medium Power Technology (AMPT) optimizes the trade-off between switching losses and forward voltage drop.

Diode Arrays Applications

Rectifiers for industrial drive applications
Rectifiers for uninterruptible power supplies (UPS)
Battery charger circuits

Diode Arrays Procurement Notes

Verify the specific ordering suffix to confirm RoHS compliance and packaging details. Ensure that the mounting torque specifications are strictly adhered to during installation to maintain the integrity of the pressure contact interface. Confirm that the application environment remains within the specified operating temperature range of -40 °C to +150 °C.

Diode Arrays Selection Notes

Select this component when high voltage blocking capability above 3000 V is required in a compact industrial package. The insulated base plate simplifies heatsinking requirements by eliminating the need for additional insulating washers. Evaluate the thermal resistance values against the expected ambient conditions and cooling method to ensure the junction temperature does not exceed the maximum limit.

Diode Arrays Part Context

This module belongs to the Infineon Power Block family, designed for high-power density applications. The 34 mm housing standard allows for compatibility with existing industrial mounting structures. The product utilizes silicon-based bipolar semiconductor technology optimized for medium power levels where robustness and long-term stability are critical.

Diode Arrays Replacement Considerations

Consult the official short form catalog or technical documentation for verified substitute part numbers. Do not assume cross-compatibility based solely on similar voltage or current ratings without verifying pinout and thermal characteristics.
