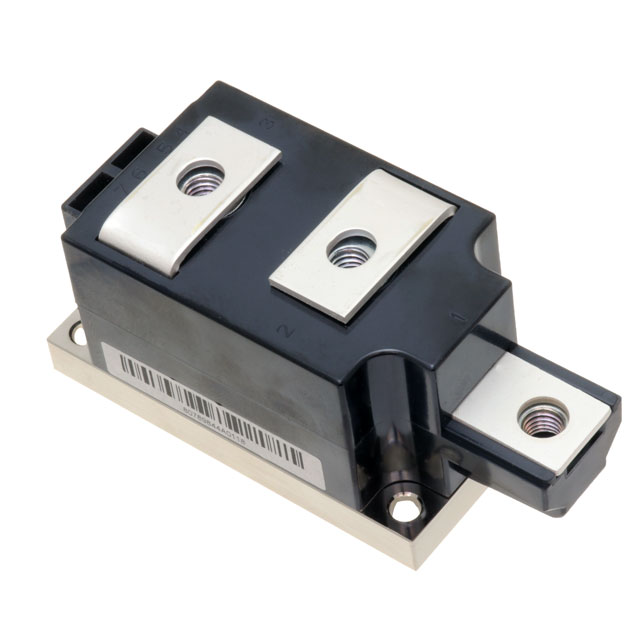

DD175N34KHPSA1 is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is DIODE MOD GP 3400V 223A MOD. Review the specifications below when checking this part for your BOM.
Diode Arrays specifications for DD175N34KHPSA1
- Description：DIODE MOD GP 3400V 223A MOD
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- Diode Configuration：1 Pair Series Connection
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：3400 V
- Current - Average Rectified (Io) (per Diode)：223A
- Voltage - Forward (Vf) (Max) @ If：2.05 V @ 600 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：20 mA @ 3400 V
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Diode Arrays datasheet and documents for DD175N34KHPSA1
Diode Arrays Overview
The DD175N34KHPSA1 is a silicon rectifier diode module manufactured by Infineon Technologies. It features a reverse voltage of 3400 V and an average forward current rating of 350 A. The device utilizes pressure contact technology within the DD175 housing, designed for screw mounting. Key electrical parameters include a maximum forward voltage of 2.05 V and a gate trigger current of 20 mA. The component operates within a temperature range of -40 °C to +150 °C junction temperature.
Diode Arrays Feature Summary
- Utilizes pressure contact technology for high reliability and robust mechanical connection.
- Designed in the DD175 housing format suitable for industrial power applications.
- Constructed using silicon semiconductor technology for high voltage handling.
Diode Arrays Applications
- High-power rectification circuits
- Industrial power conversion systems
- High voltage DC transmission components
Diode Arrays Procurement Notes
Verify the specific suffix KHPSA1 against official Infineon documentation to confirm exact manufacturing revision and compliance status. Confirm availability through authorized distributors as supply levels fluctuate. Ensure the ordering part number matches the required datasheet version for accurate technical specifications and pinout definitions before procurement.
Diode Arrays Selection Notes
Select this module when applications require high voltage blocking capabilities exceeding 3000 V combined with significant continuous current handling. The DD175 package facilitates efficient thermal management via screw mounting. Evaluate thermal resistance and cooling requirements to ensure operation remains within the specified junction temperature limits under expected load conditions.
Diode Arrays Part Context
This component belongs to the Infineon Diode Modules product line, specifically categorized under discrete and power modules. It is part of the broader family of high-power bipolar semiconductors designed for demanding industrial environments. The DD175 series represents a standardized housing solution for large current rectifiers.
Diode Arrays Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Verify compatibility with existing circuit designs if considering alternative manufacturers or different voltage/current ratings from the same product family.
